Easily Assembled Single Sided Wall Formwork For Concrete Pouring Construction

Minimum Order Quantity : 100 Sqe Price : $150-200 /Sqe
Packaging Details : Pallet Delivery Time : 25-30 work days
Payment Terms : L/C, T/T Supply Ability : 100000 Sqe/ year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Steel,H20 Timber Beam,Plywood,Aluminum Formwork Color: Yellow,Blue Or Customized
Size: Customized Weight: 100kg/Sqe
Feature: Easily Assembled, Heat-Resistant, Single-sided, Eco Friendly, Fast Assembly & Positioning Packing: Seaworthy Packing
Overseas After-sale Service: Available Market: South East Asia, Africa, Middle East Etc.
High Light:

one sided wall formwork

,

single sided concrete wall forms

Product Description

ForPro Timber Beam Single Side Wall Formwork for Concrete Pouring Construction



Outline

The single-sided wall formwork is designed for wall structure which formwork can only be erected in one side. Concrete pressure will be transferred to foundation via bracket of single-sided wall formwork.The pouring height is adjustable, the maximum height of a single pouring is 8.0m.

The formwork is always used in the concrete pouring of basement, subway, sewage treatment factory, culvert, retaining wall etc.

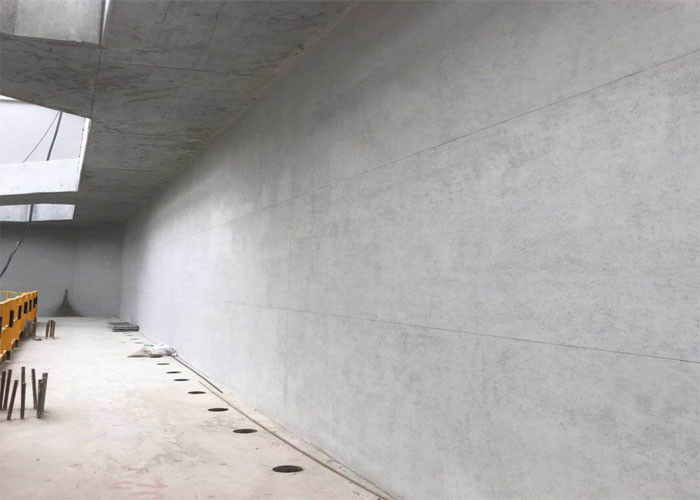

Easily Assembled Single Sided Wall Formwork For Concrete Pouring Construction 0

Components

  • Supporting bracket system

Supporting bracket system include basic supporting bracket 4.5m, basic supporting bracket 5.5m and heightened supporting bracket, Different concrete height can be poured with different support bracket combination.

  • Forpro large size panel system

Thanks to large dimension size plywood, there is no vertical plywood joint and only one horizontal plywood joint for each single wall formwork unit.

  • Anchoring system

high strength snakelike anchor is applied to guarantee high loadability and small elongation of the anchor rod.



Technical Specification

  • Casting height can reach to 4.5m with basic supporting bracket 4.5m
  • Casting height can reach to 5.5m with basic supporting bracket 5.5m
  • Casting height can reach to 8.0m with combination of differenc support bracketing
  • Permitted max concrete pressure is 50KN/m2, special calculation needs to be executed if bigger concrete pressure is required from specific project.
  • Working platform width is 750mm and permitted live load is 1.5KN/m2.

Application
Forpro large size panel system is widely applied in various projects field.

  1. Containment and factory of nuclear power plant project:
  2. Dam, shiplift, power plant and coffer dam of hydropower project:
  3. Pylon, pier and anchorage blocks of bridge project:
  4. Core, column and elevator shaft of high-rise building:
  5. LNG & Chemical tank etc

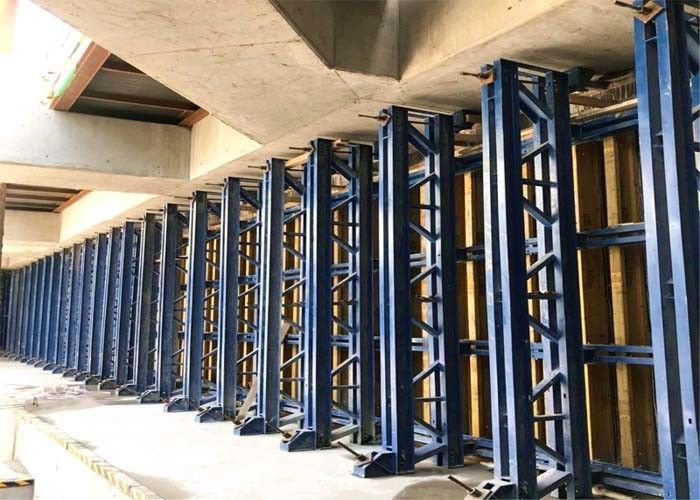

 Easily Assembled Single Sided Wall Formwork For Concrete Pouring Construction 1

FAQ
Q 1, Are you a factory or a trading company?
Yes,We are professional factory.

Q 2.Do you have strong techinicans teams?
Yes,We have 9 project designers, 4 product development engineers and 10 technical guidance engineers. The whole team has more than 20 years of engineering experience

Q 3. Do you accept OEM services?
Yes, we could make the customized products according to your drawings.

Q 4. What is your production capacity?
3000Tons per month.

Q 5. Do you have test report?

Yes, all of our products get the famous German Rhine certifications

Q 6. How long is your delivery.
Usually 20-25days after deposit confirmed.
