China Wall Formwork System manufacturer

H20 Timber Beam and Plywood Concrete Pouring Material For Formwork System

Product Details:
Place of Origin: Shanghai
Brand Name: ForPro
Certification: ISO and CE
Model Number: 1-12M
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: $10-15/M
Packaging Details: Pallet
Delivery Time: 20-25 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000M/Year

Detail Information

Lead Time: 20 Days Quality Guarantee: One Year
Quality: New Package: Standard Package (plastic Bag/carton Box)
Material: Wood Unit Price: Contact Us
High Light:

phenolic ply board

,

structural timber beams

Product Description

H20 Timber Beam and Plywood Concrete Pouring Material For Formwork System



Outline

ForPro Timber beam is a standard component of formwork system,it is widely applied in projects like housing, civil engineering, transportation, hydropower and LNG etc. high quality raw material is selected to manufacture our product.

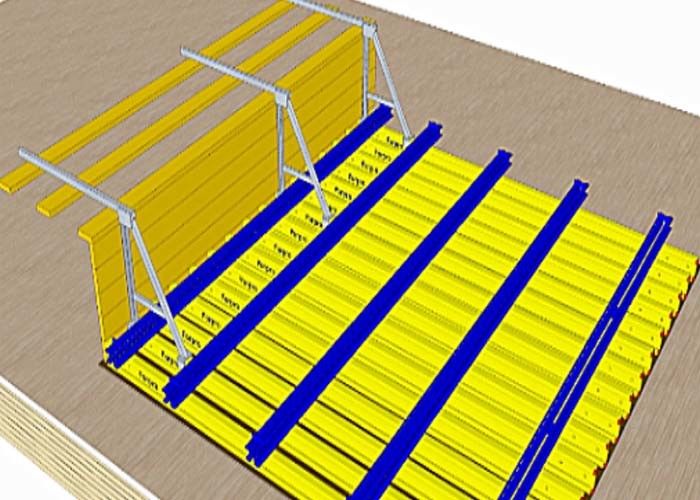

H20 Timber Beam and Plywood Concrete Pouring Material For Formwork System 0

ForPro offers vraious plywood sheets with different size and grade. Forpro large size plywood is avalaible within the dimension of 2mx6m or on demand. The phenolic plywood are used in walls and slabs construction and they are very suitable for almost joint-free and fairfaced concrete finishes requirement as well as high numbers of utilisation. Plywood surface is coated with 220 g/m² phenolic resin. It ensures more repeated uses than conventional plywood and offers excellent fair-faced concrete finish surface.

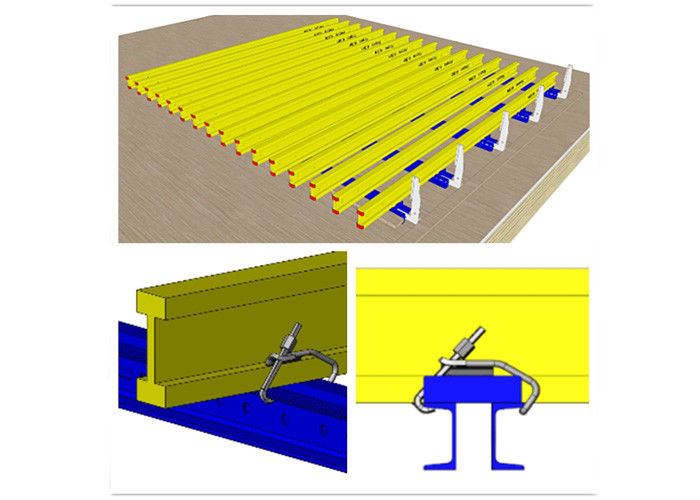

H20 Timber Beam and Plywood Concrete Pouring Material For Formwork System 1

Timber Beam Product dimension

Beam height: 200mm

Flange width: 80mm

Flange thickness: 40mm

Web thickness: 27mm



Technical data

 Permitted bending moment  Permitted shear force  Weight
 5kN.m  11kN  Approx.5kg per running meter



Dimension tolerance

 Length(mm)  Tolerance(mm)
 ≤12000  ≤2



Number of recycles

The possible number of  cycles depends on a multiplicity of external influences acting on the timber beam and correct application. A non-binding guide value is 60~100 cycles under optimum condition and very good treatment to the timber beam by the user.



Manufacture standard

GB/T 31265 Wood I beam for concrete form

EN13377 Prefabricated timber formwork beams-requirements, classification and assessment.



Plywood Technical Specification



1. Surface treatment: 220mg/m2 Phenolic both side.

2. Standard size:1220x2440.

3. Max size of single piece 2mx6m (width x length) or any dimension on demand.

3. Thickness:15mm, 18mm, 21mm

4. Certification: ISO9001,ISO14001,CE

5. Moisture:8-14%



Applications



H20 Timber Beam and Plywood Concrete Pouring Material For Formwork System 2



H20 Timber Beam and Plywood Concrete Pouring Material For Formwork System 3
