Solid Structure One Sided Wall Formwork , Single Sided Formwork Simple Operation

Minimum Order Quantity : 100 Sqm Price : $150-200 /Sqm
Packaging Details : Pallet Delivery Time : 25-30 work days
Payment Terms : L/C, T/T Supply Ability : 10000 Sqm/ year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Steel,H20 Timber Beam,Plywood,Aluminum Formwork Color: Yellow,Blue Or Customized
Size: Customized Weight: 100kg/Sqe
Feature: Easily Assembled, Heat-Resistant, Single-sided, Eco Friendly, Fast Assembly & Positioning Packing: Seaworthy Packing
High Light:

one sided wall formwork

,

single sided concrete wall forms

Product Description

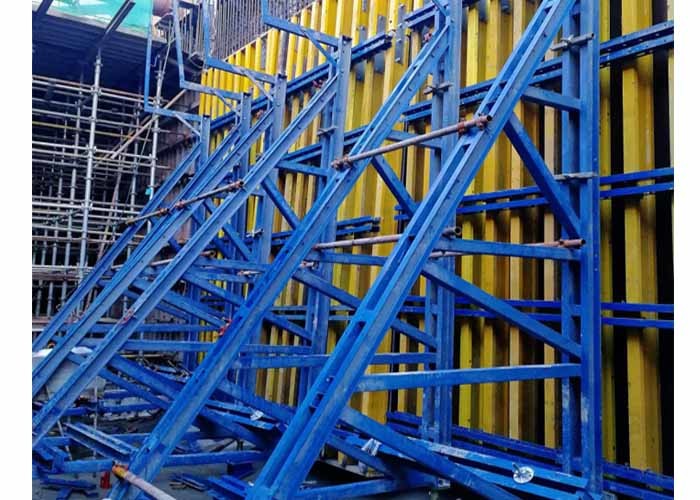

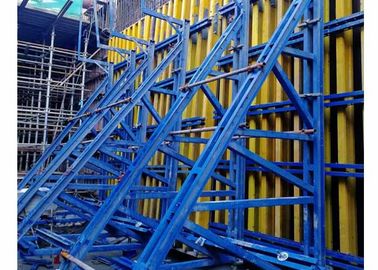

Easy Assembly Heavy Duty Single Sided Wall Formwork for Underground Metro Station



Outline

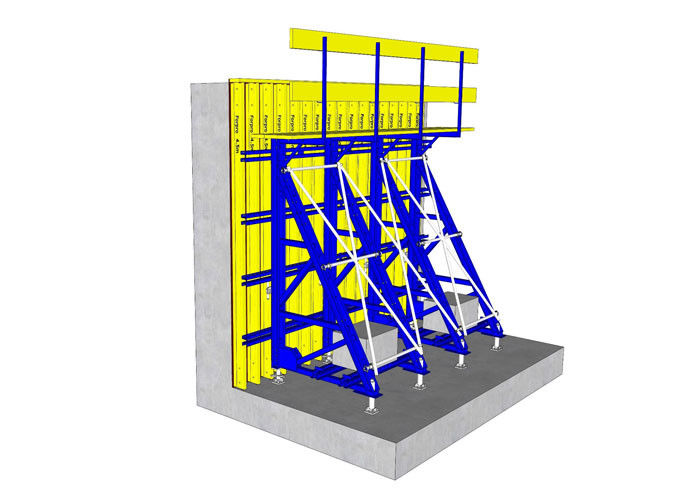

The single-sided wall formwork is designed for wall structure which formwork can only be erected in one side. Concrete pressure will be transferred to foundation via bracket of single-sided wall formwork.The pouring height is adjustable, the maximum casting height can reach to 8.0m.The formwork is widely used in the concrete pouring of basement, subway, sewage treatment factory, culvert, retaining wall etc.



Elements

• Supporting bracket system include

—basic supporting bracket 4.5m

—basic supporting bracket 5.5m

—heightened supporting bracket

• Forpro large size panel system

Thanks to large dimension size plywood, there is no vertical plywood joint and only one horizontal plywood joint for each single wall formwork unit.

• Anchoring system

high strength snakelike anchor is applied to guarantee high loadability and small elongation of the anchor rod.



Technical Specification

Casting height can reach to 4.5m with basic supporting bracket 4.5m

Casting height can reach to 5.5m with basic supporting bracket 5.5m

Casting height can reach to 8.0m with combination of differenc support bracketing

Permitted max concrete pressure is 50KN/m2, special calculation needs to be executed if bigger concrete pressure is required.

Working platform width is 750mm and permitted live load is 1.5KN/m2.



Application
Forpro large size panel system is widely applied in various projects field.

1.Containment and factory of nuclear power plant project:

2.Dam, shiplift, power plant and coffer dam of hydropower project:

3.Pylon, pier and anchorage blocks of bridge project:

4.Core, column and elevator shaft of high-rise building:

5.LNG & Chemical tank etc

 Solid Structure One Sided Wall Formwork , Single Sided Formwork Simple Operation 0



Packing and transportation

Solid Structure One Sided Wall Formwork , Single Sided Formwork Simple Operation 1



Our factory

Solid Structure One Sided Wall Formwork , Single Sided Formwork Simple Operation 2Solid Structure One Sided Wall Formwork , Single Sided Formwork Simple Operation 3
