Metro Station Single Sided Concrete Wall Forms With Triangle Supporting Frame

Minimum Order Quantity : 25 m Price : $2300 /m
Packaging Details : Pallet Delivery Time : 25-30 work days
Payment Terms : L/C, T/T Supply Ability : 100000 m/ year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Triangle supporting frame

Detail Information

Material: Steel,H20 Timber Beam,Plywood,Aluminum Formwork Color: Blue Or Customized,Yellow
Size: Heavy Duty Weight: 1400kg/unit
Feature: Easily Assembled, Heat-Resistant, Single-sided, Eco Friendly, Fast Assembly & Positioning Packing: Packing
High Light:

one sided wall formwork

,

one sided concrete formwork

Product Description

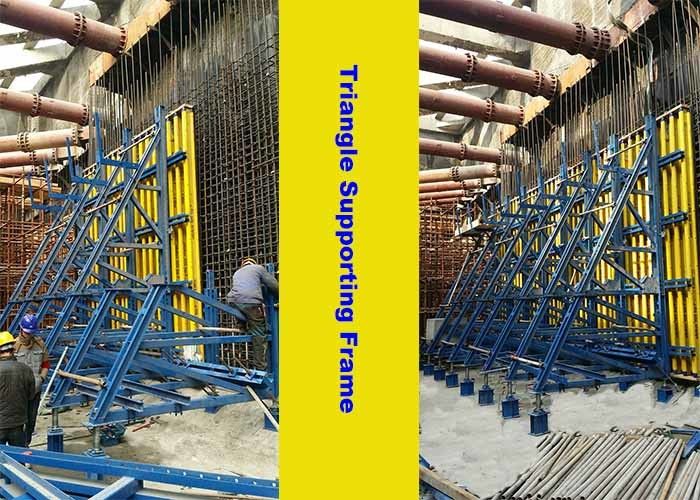

Triangle Supporting frame for Side Wall of Metro Station Concrete Pouring



Outline

For single sided wall structure like metro station, retaining wall and house basement, Formwork could only be erected at one side, Through tie rod is impossible to be placed through the wall. All fresh concrete pressure will be taken by triangle supporting frame and then directly transferred to foundation via high strength snake like tie road. Formwork and supporting frame is assembled combination as one unit, and can be move quickly to new position with the assistance of trolly.



Main parts

• Large panel with timber beam H20, High quality plywood and steel waler

• Mudular triangle supporting frame with 4.5m and 5.5m

• Snake-like anchor with high loadability

• Customized trolly for transportation of singled sided wall formwork unit.



Technical parameter

Permitted max.concrete pressure is 50KN/m2 .

Max. permissible load of snake tie rod 25.0 is 250KN

• Max.casting height can reach to 8.0m with combination of differenc support frames

• Working platform width is 750mm and permitted live load is 1.5KN/m2

• Trolley to tranport the whole unit on the jobsite



Application field

•  Metro station

•  Bridge anchoring block

•  Retaining wall

•  Basement



Metro Station Single Sided Concrete Wall Forms With Triangle Supporting Frame 0

Forpro Service

Provide support in every stage of projects
1.Provide cosult when client take part in projects bid invitation.
2.Provide optimized formwork tender solution to assitant client to win the project.

3.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

4.Start to design the formwork detailedly according to the winning bidding.
5.Provide economic formwork solution package and provide continous on-site support service.
