FORPRO FORMWORK TECHNOLOGY (SHANGHAI) CO., LTD.

Slab Concrete Formwork Accessories Adjustable Steel Triangle Support

Product Details:
Place of Origin: Shanghai
Brand Name: ForPro
Certification: ISO and CE
Model Number: 1-9M
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: $20-30/pcs
Packaging Details: Pallet
Delivery Time: 20-30 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs
  • Detail Information
  • Product Description

Detail Information

Material: Q345;Q235 Color: Silver
Surface: Galvanized,Hot-dip Galvanization/ Electro Galvanization /or As Your Request Advantage: Safty,High-Efficiency
Oem: Acceptable Origin: China
High Light:

tie rod construction formwork

,

concrete formwork brackets

Product Description

Adjustable Steel Triangle Support for Efficient and Economic Slab Formwork System



Outline

Steel triangle support is a part of slab formwork ,as the abutment of slab formwork,which is the way to transmit upper loading into ground.It compose to 4 parts,a top prop,a sleeve pole,a connection pole and a triangle prop.Simple structure and good mechanical performance makes it easily to accomplish the job that suppoet the whole formwork.Convenient assembling operation can save time for project.



Product dimension

Adjustable length:1.6-2.9M,1.7-3.0M,1.8-3.2M,2.0-3.5M,2.0-3.6M,2.2-4.0M,2.5-4.5M



Surface

Galvanised



Permission load

30 KN at any telescoping legth to EN 1065



Applications

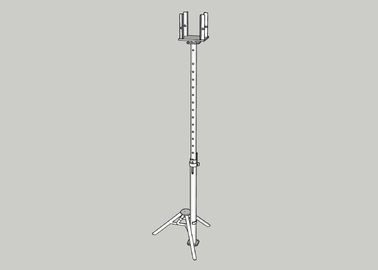

Slab Concrete Formwork Accessories Adjustable Steel Triangle Support 0

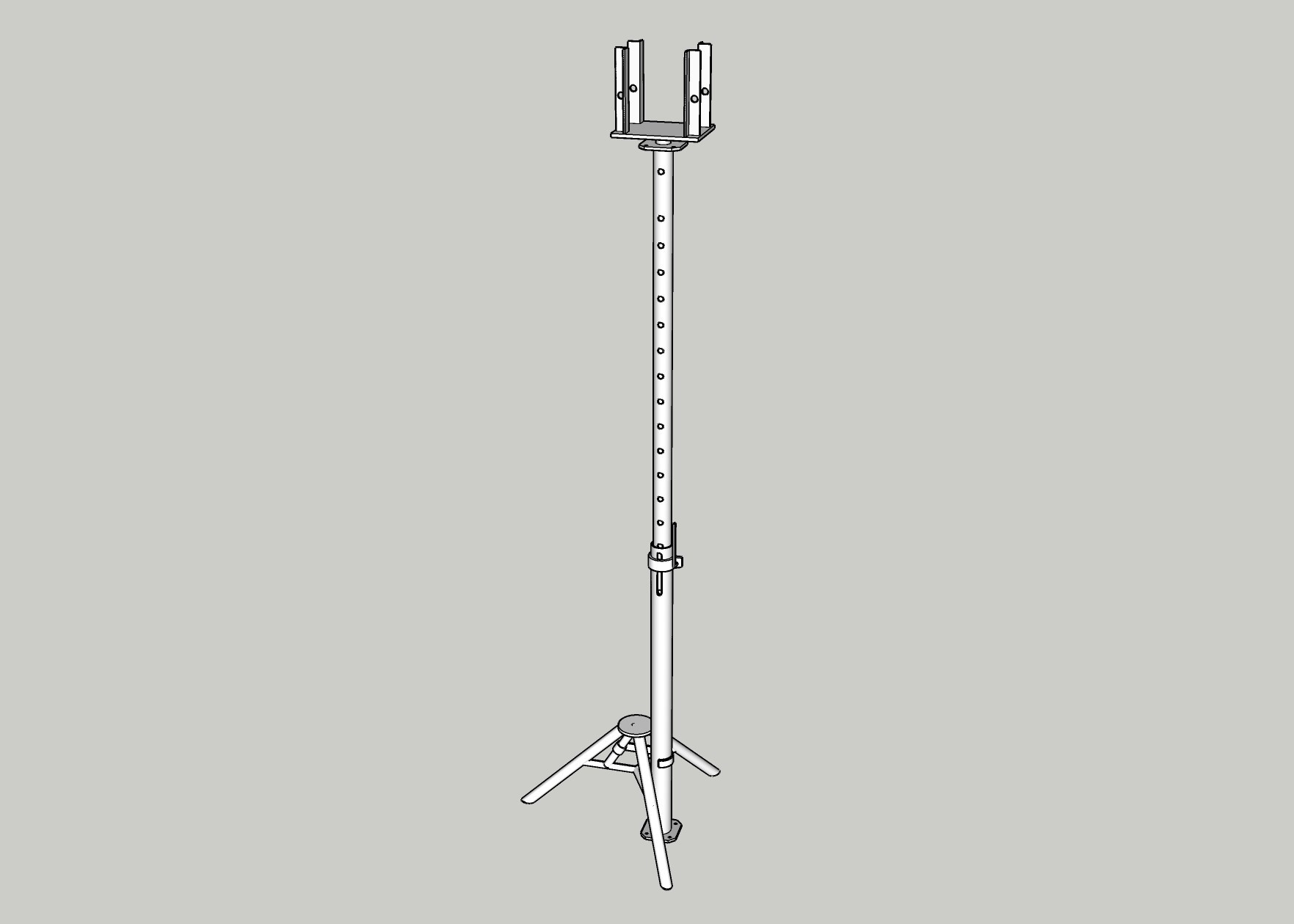

Slab Concrete Formwork Accessories Adjustable Steel Triangle Support 1
