Light Weight Steel Shuttering Plates , Concrete Wall Forming Systems
Contact Person : Liu
Phone Number : 86-18011399169
WhatsApp : +8618280345525
Minimum Order Quantity : | 100 sqm | Price : | $100-150/Sqm |
---|---|---|---|
Packaging Details : | Pallet | Delivery Time : | 15-20 work days |
Payment Terms : | L/C, T/T | Supply Ability : | 1000000 Sqm / Year |
Place of Origin: | Shanghai | Brand Name: | ForPro |
---|---|---|---|
Certification: | ISO and CE | Model Number: | Customized |
Detail Information |
|||
Material: | Hot Galvanizing Steel And Plywood | Color: | Yellow,Blue |
---|---|---|---|

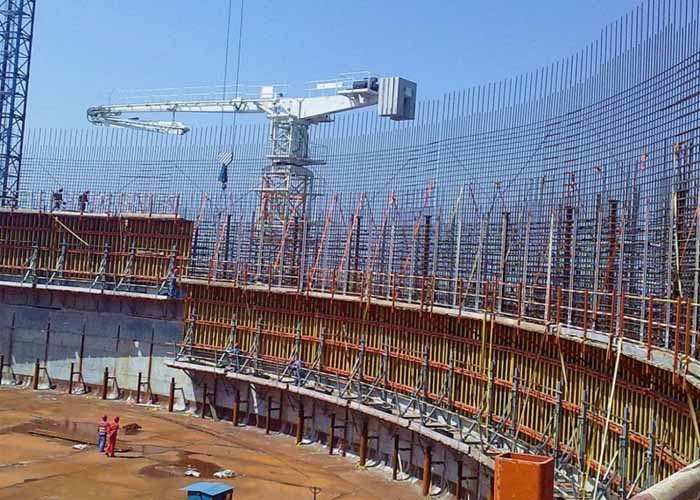

Application: | LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc.. | Plywood Size: | Customized |
Thickness: | Plywood 15mm 18mm 21mm,Customized | Shape: | Graph; Straight Line |
Price: | Contact Us | Components: | Steel Wailing;Plywood;H20 Timber Beam Etc. |
High Light: | concrete wall forming systems,concrete wall formwork systems |
Product Description
H20 Timber Beam Wall Formwork Can be Shaped Into Any Size According to Different Project Structures
Product Description
H20 Timber Beam wall formwork is mainly consisted of timber beam H20, steel waler and plywood. It can be easily satisfied to different sizes and shapes according to specific projects. It is efficient and cost-effective and widely used in the sites all over the world.
The system is convenient for construction and easy to control the quality. It can provide an excellent concrete finish surface for any vertical structure,including walls,piers,abutments,etc.
Components
Components | Description |
Wall formwork panel | Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size) |
H20 Timber beam | Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size |
Steel waling | Double steel channel |
Flange clamp | Galvanized To connect steel waling and H20 beams |
Panel strut | Painted |
Waling connector | Painted, Used for formwork panels alignment |
Corner connector | Painted, Used for forming inner corner formwork with wedge pins |
Features
* Ready to use after pre-assembly.
* Efficent and time-saving especially for large area walls where request for repeated castings.
* Can meet different fresh concrete pressure by spacing the timbers and walings.
* Can produce fair-faced concrete finishing surface.
Advantage
H20 beam is an important part in international construction formwork system, with high strength, light weight, strong carrying capacity, can reduce the amount of support and expand the spacing and the construction space, convenient installation and use of flexible, easy assembly and disassembly, surface water resistant at the scene, the province province etc., can be use for many years, low comprehensive cost amortization expenses.
Packing
1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.
Applications
