Lightweight Dam Climbing Formwork System With High Load Bearing Capacity

Product Description

Massive Concrete Ideal Dam Formwork System to Construct Bridge Abutment and Power Station

Description

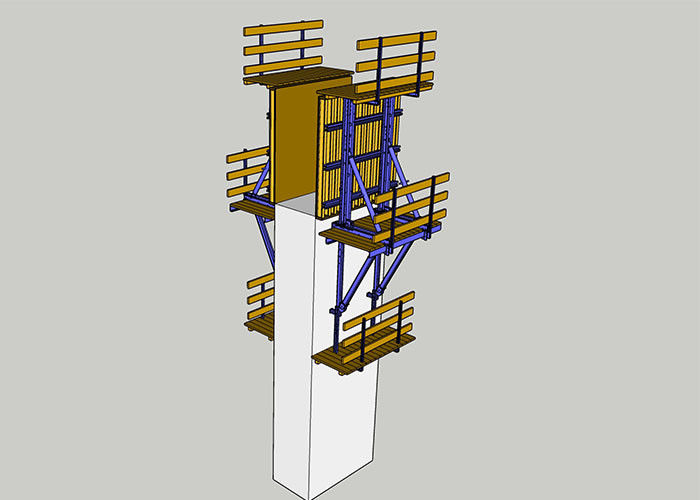

As a light weight dam formwork system, DF150 climbing formwork owns high load bearing capacity and safety character, Its application filed covers from dam projects, abutment, spiilway to sigle sided retaining wall and shiplocks etc. No through-in tie rod to be installed, all concrete pressure will be directly trnasfered to old concrete structure via DF150 climbing brackets.  1.70m wide platform in comibination with title back formwork unit ensure speedy and safe formwork operation. Multi level platforms  provide orient work space for formwork operation, concrete pouring and concrete surface repairing. The whole system is anchored in the stucture during the whole working process, the modular elements can be adjusted to fit any angle of wall inclination within 30⁰.

Elements
• Standard casting height is 2m with 1.5m influnce width

•Title back formwork unit could be Timber beam large size formwork or steel formwork

• Light weight triangle brackets bearing concrete pressure

• Anchoring system D15.0 with high loadability

Features

• Standard panel width is suggested to be 3m
• Main Platform is 1.70 m wide for safe operation

• Steel formwork or H20 timber beam formwork unit  is title back

• 3 levels of platform provide space for concrete pouring, formwork operation and concrete surface repairing

• Max. permitted pull force is 150kN per bracket for embedded tie rod
