Concrete System Column Formwork With Standard Timber Beam H20 And Steel Waler

Minimum Order Quantity : 100 Sqm Price : $100-150 / Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Timber Beam H20

Detail Information

Features: Simple And Efficient Operation Material: Q235 Steel, Timber Beam,Plywood
Color: Yellow,Blue,Black Size: Universal Forming
Product Name: Felxible Column Formwork Aluminium Alloy Formwork, Steel Column Formwork, Aluminum Formwork Construction Material, Aluminum Formwork System Concrete Forming System Concrete Formwork, Aluminium Adjustable Column Formwork Application: Concrete Construction, Beam, Building Construction, Wall And Column Concrete Construction, Pillar And Etc
High Light:

concrete column formwork

,

system column formwork

Product Description

Timber Beam Column Formwork for Concrete Column Easy to Assemble



Outline
No matter geometry, size and height, Timber beam column formwork can form any columns. With standard timber beam H20 and steel waler, the column formwork could be quickly assembled with less labour costs. With customized big size plywood, It is easy to achieve first class concrete surface. After assembling, the whole column formwork could be lift as one unit to new position. One time assembly and several reuse cycling, Timber beam column formwrok provide not only better concrete surface but also speedy construction time.The system has the same parts with wall formwork.



Main Parts

Optional any plywood sheet according to specific requirements of the projects

Universal timer beam H20

Universal steel waler

Accessories





Technical Specification
Max. permissable pressure is 80kN/m2

Max.Cross section is 1.0mx1.0m without in-through tie rod

Flexible adjustment to fit different column dimension





Applications

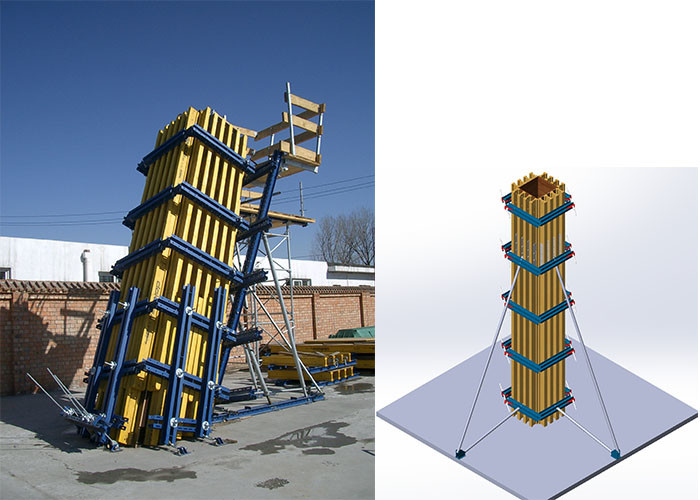

Concrete System Column Formwork With Standard Timber Beam H20 And Steel Waler 0



Forpro Service

Provide support in every stage of projects
1. Provide cosult when client take part in projects bid invitation.
2. Provide optimized formwork tender solution to assitant client to win the project.

3. Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

4. Start to design the formwork detailedly according to the winning bidding.
5. Provide economic formwork solution package and provide continous on-site support service.
