Small Size RCC Dam Climbing Formwork ISO Approval

Product Details:
Place of Origin: shanghai
Brand Name: Forpro
Certification: ISO and CE
Model Number: Light Dam Construction Climbing formwork system
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $2600-2800/pcs
Packaging Details: Pallet
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 Pcs / year

Detail Information

Material: Steel Panel,Timber Beam Panel,Q235 Steel, Bended Profile Color: Customized Color Blue Lacquer, Brown, Light Yellow
Size: Pull Force 150KN Application: RCC Dam,Coffer Dam,Gate Dam Bridge Abutment,Massive Concrete, Dam, Power Station,
Product Name: Title Backe Dam Climbing Formwork DF150 System Type: Wall Formwork, Steel Formwork,Column Formwork,Climbing Formwork
High Light:

crane climbing formwork


climbing scaffolding system


RCC Dam Climbing Formwork

Product Description

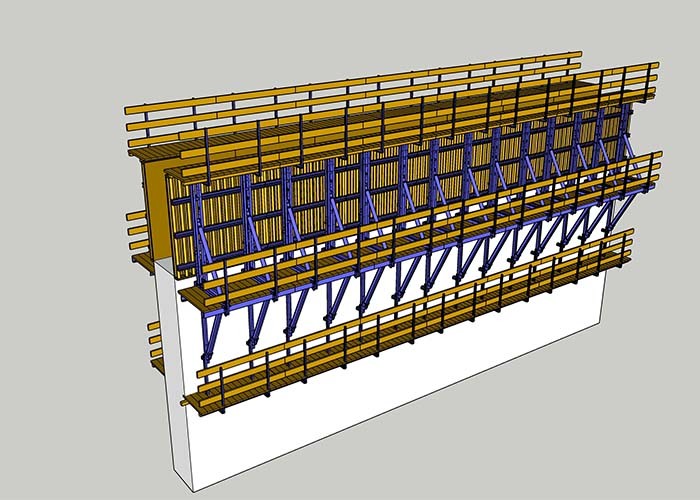

Massive Concrete Project To Be Built With Dam Climbing Formwork System DF150



For small size RCC dam projects and other massive concrete projects like dam, abutment, coffer dam, shiplock and power station house projects, Dam climbing formwork DF150 will be the most economical and effeciency formwork selection, Formwork and climbing bracket is assembled together in advance and lifted to new position within 10 minutes.  3  levels of  platforms  provide orient work space for formwork operation, concrete pouring and concrete surface repairing. The whole system is anchored in the stucture during the whole working process, the modular elements can be adjusted to fit any angle of wall inclination within 300.

• Large size steel panel or steel frame panel

• Light weight climbing brackets DF150

• Main platform, top plstform and suspension platform

• Climbing cone, high strength screw and snake-like anchor 15.0


• Standard ouring height is 2m

• Max. permissable concrete pressure is 25KN/m2

• Min.concrete strength requirement in anchoring point is 10MPa

• Max. permitted pull force is 150kN per bracket for embedded tie rod

• Main platform width is 1.60m


Steel Panel Dimension Sheet


Product Series Product Dimension (WxL)
3.0m 3.0x2.1 3.0x1.5 3.0x1.2 3.0x0.9 3.0x0.6 3.0x0.3
2.4m 2.4x2.1 2.4x1.5 2.4x1.2 2.4x0.9 2.4x0.6 2.4x0.3


Applications Field


Small Size RCC Dam Climbing Formwork ISO Approval 0
