Large Size Plywood Formwork for Concrete System with Best Price

Product Description

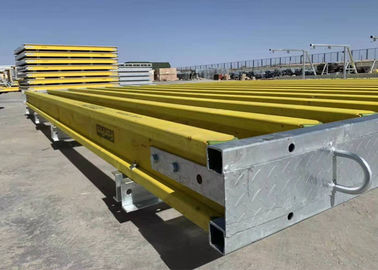

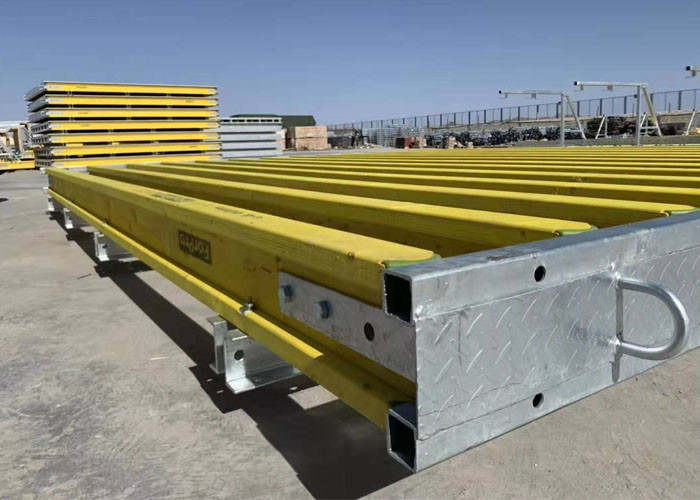

Large size panel system is a big dimension formwork panel system which is composed of H20 timber beam, film faced plywood and steel waler. This extraordinarily flexible and versatile formwork was designed by ForPro, which able to provide an excellent concrete finish for any vertical structure, including walls, piers and abutments.


Components

1. Timber beam H20
2. Large size plywood
3. Steel waler

Technical Specification

1. Plywood thickness is 18mm & 21mm, Max dimension is 2mx6m (Customized size).
2. timber beam height is 200mm, width is 80mm, length is 1m to 6m. Permitted bending moment is 5KN·m;permitted shear force is 11kN;
3. Steel waler is a welded double U profile 100 or 120, slot holes are drilled on the waler flange for universal application.

​

​

Advantages

• Composed of wood and steel, lighter than steel fomwork;
• Convenient to modify, and environmentally friendly;
• Concrete surfaces have fewer pores because of film-faced plywood;
• Cost ecnomically due to reuse, safety when the concrete is being poured;
• Can be transfered into other formwork according to ForPro specially arranged solution.

Company Profile

ForPro Formwork Technology Co.,Ltd is a professional formwork company concentrating on formwork R&D, design manufacture and selling.
Our products are large size panel system, crane lift climbing formwork system, hydraulic climbing formwork system, dam formwork, single side supporting formwork, reinforcement installation platform, heavy duty load bearing tower, safety protection facilities and spare parts of various formwork systems.
With more than 15 years' rich experiences in formwork industry ForPro technical team has won high reputation from our customers. Relying on profound technical accumulation and strong R&D capability, ForPro provides projects with economic and efficient formwork solution package. We can develop custom-made formwork system according to client's special requirements and we can also support our customers to renovate and upgrade their existing formwork facilities.
We successively provided formwork system and technical services to Karachi Nuclear Power Plant, Hongyanhe Nuclear Power Plant, Zhejiang Daishan Island project, Ningbo Metro Line 3 and Hefei Metro Line 4 project. Sutong GIL gallery project, Jinsha river bridge, Xinpu chemical tank, Guanghui LNG tank, Chaozhou Huafeng LNG tank, Tangshan LNG, Yangshan LNG,Yanglin LNG tank, Xiapu Nuclear power plant and Fangchenggang Diesal plant project etc.
