Customized Design Veritical Wall Formwork Concrete Forms

Product Description

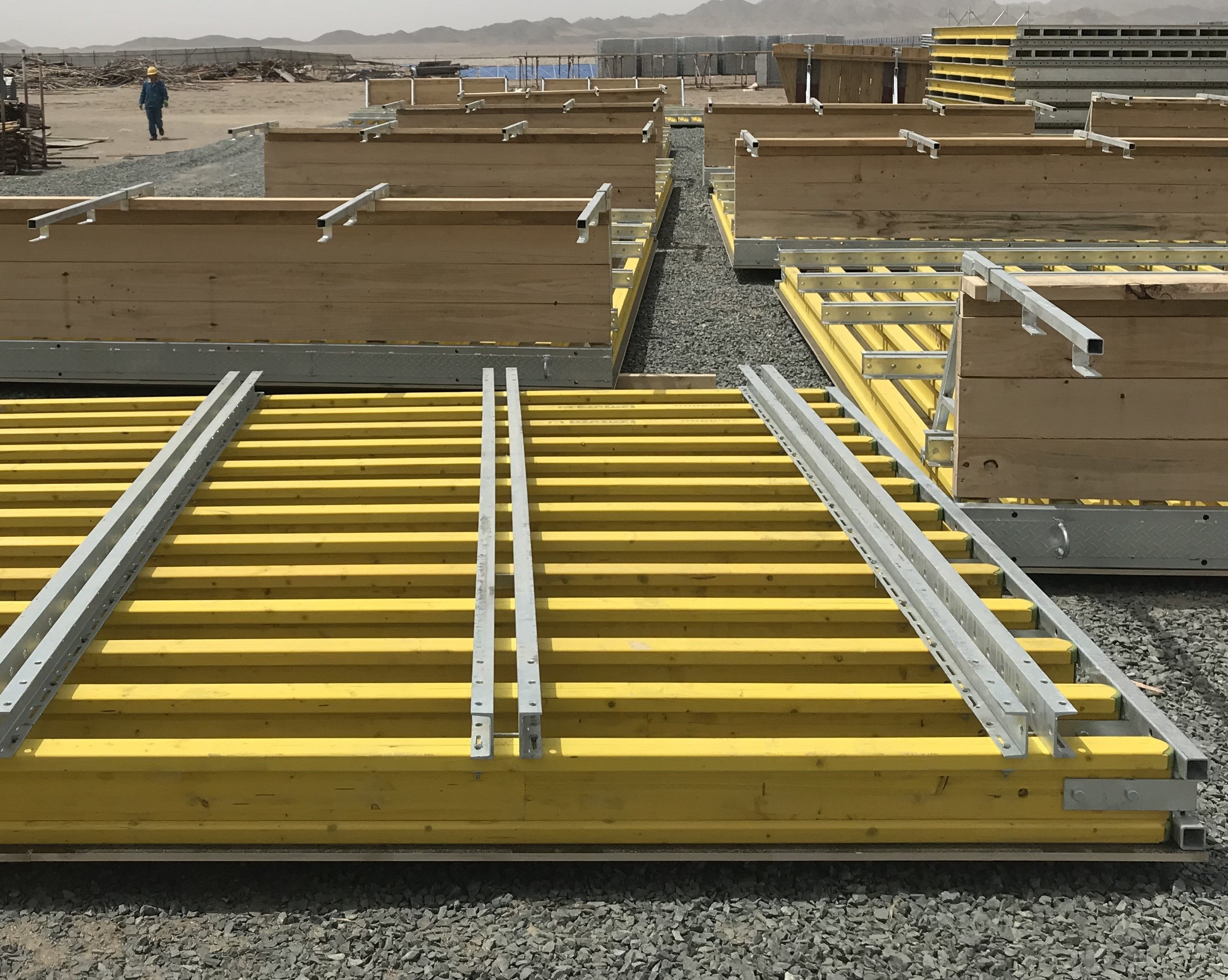

Timber beam H20 wall formwork is mainly consisted of timber beam H20, steel waler and plywood. It can be easily satisfied to different sizes and shapes according to specific projects. It is efficient and cost-effective and widely used in the sites all over the world.

The system is convenient for construction and easy to control the quality. It can provide an excellent concrete finish surface for any vertical structure,including walls,piers,abutments,etc.


Technical Specification

•  Basic unit sizes(width x height): 1..22m x 2.44m,1.25m x 2.5m, 1.5m x 3.0m.
•  Customized unit sizes according to projects requirment.
•  Up to 6.5m wall height with just one pouring
•  Main components: 18mm or 21mm plywood; H20 timber beam; steel waler

Features

• Ready to use after pre-assembly
• Efficent and time-saving especially for large area walls where request for repeated castings
• Can meet different fresh concrete pressure by spacing the timbers and walings
• Can produce fair-faced concrete finishing surface.
