Modular Climbing Scaffolding System , Crane Lifted Climbing Formwork
Contact Person : Liu
Phone Number : 86-18011399169
WhatsApp : +8618280345525
Minimum Order Quantity : | 100 pcs | Packaging Details : | Pallet |
---|---|---|---|
Delivery Time : | 30-45 work days | Payment Terms : | L/C, T/T |
Supply Ability : | 100000 Pcs / year |
Place of Origin: | shanghai | Brand Name: | Forpro |
---|---|---|---|
Certification: | ISO and CE | Model Number: | Tank construction climbing formwork F16 system |
Detail Information |
|||
Material: | Q235 Steel, H20 ,Plywood,steel Frame | Color: | Hot-galvanize Brown, Light Yellow,Silver |
---|---|---|---|
Size: | 70KN Pull Force Per Bracket | Application: | Silo, Nuclear Power Point, Liquid Nature Gas Tank, Shiplock, High Piers |
Product Name: | Simple Light Weight Climbing Formwork F16 System | Type: | Climbing Formwork,Wall Formwork, Steel Formwork,Column Formwork,Climbing Formwork |
High Light: | crane climbing formwork,self climbing scaffold system |
Product Description
Light-Weight and Safety Climbing Formwork System F16 for High-rise Building
Description

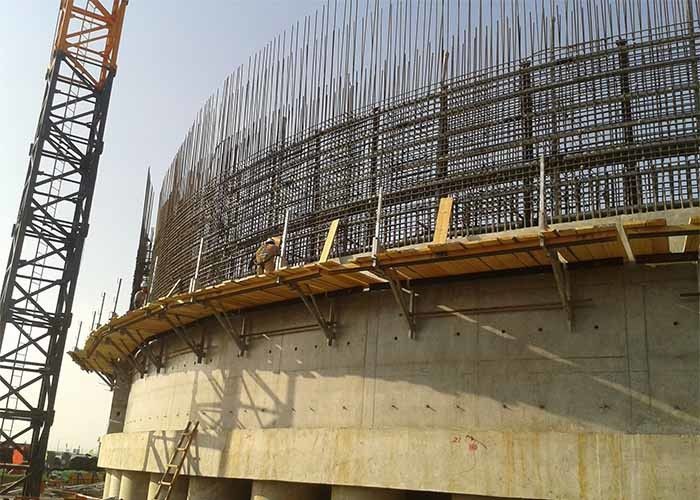

For tank projects like liquid gas tank, nuclear reactor and silo projects. Climbing formwork F16 is the idea formwork solution due to its advantage of modular design and low weight. With only 3 main components, it can be assemled quickly. It permits speedy postion and safer anchoring at any height. With 700mm retracting space from the concrete surface , it can provide enough space for formwork cleaning and reinforcement installation. 5.5m width of formwork together with 2 climbing brackets could be lifted quickly to a new possition. F16 climbing formwork is the most economical option among crane lifted climbing formwork system
Components
• Big dimension formwork with timber beam H20 and plywood and steel waler
• Triangle brackets F16
• Diagonal cross spindle
• 3 levels platform
Charactors
• Combination of forming wood and timber beam, any shape and any radius tank projects can be adapted.
• Only lower capacity crane lift to be equipped on the jobsite
• Permissible live load for main platform is 1.5kN/m2
• Min.required concrete strength in anchor point is 15kN
• Max.permissible vertical load is 45kN per bracket
Applications Field
• Silo tanks
• LNG tanks
• NPP tanks
• Storage tanks
Forpro Service
Provide support in every stage of projects
1.Provide cosult when client take part in projects bid invitation.
2.Provide optimized formwork tender solution to assitant client to win the project.
3.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
4.Start to design the formwork detailedly according to the winning bidding.
5.Provide economic formwork solution package and provide continous on-site support service.
