High Building Projects Stair Scaffolding System

Product Description

Light Weight Stair With Universal Ringlock Scaffolding for High Building Projects

Product description

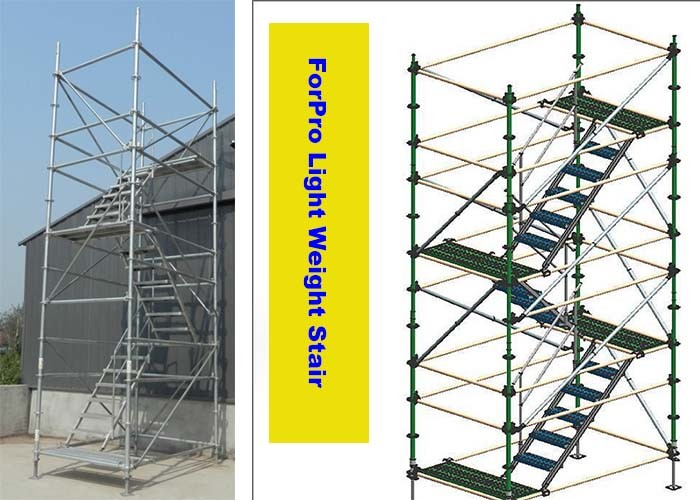

ForPro staircase R2400x2000 is assembled with individual standard ring lock scaffolding tubes. Planview size of staircase tower is 2400mmx2000mm, The max.tower height is up to  30m with permissable live load up to 2.0kN/m². As a light weight staircase, its unit weight is only 1.20kN/m.  With limited elements like standard ring lock scaffolding tubes and aluminium ladder, ForPro staircase is a universal products which provide a kind of safety vertical access to high building projects.

Main Components

Standard ring lock scaffolding tubes 3m

Standard brace 2m, 2.4m

Steel board or aluminium board optional

Ladder

Bottom jack

Technical Parameter

Staircase tower dimension (WxL) is 2400mmx2000mm

Max. tower height is 30m

Max. permissible live load is 2.0kN/m² per level

Surface treatment: Hot dipped galvanized

Q345B for shoring tubes, Q235 for other components or customized

Diameter: 48.3mm

Application

Bridge piers

High column

Hydropower dam

Nuclear power station

Hydropower station

Our Services
1. Analysis from the initial stage, and provide professional advice, consultation and formwork planning.
2. Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3. Choose a best propasal to help our clients to bid for the project.
4. Start to devise the formwork detailedly according to the winning bidding.
5. Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
