Highly Efficient Concrete Slab Formwork Systems Easy Operation For Floor Slab

Product Description

Timber Beam H20 Table Slab Formwork Systems for Floor slab Efficient and Easy Operation

Outline

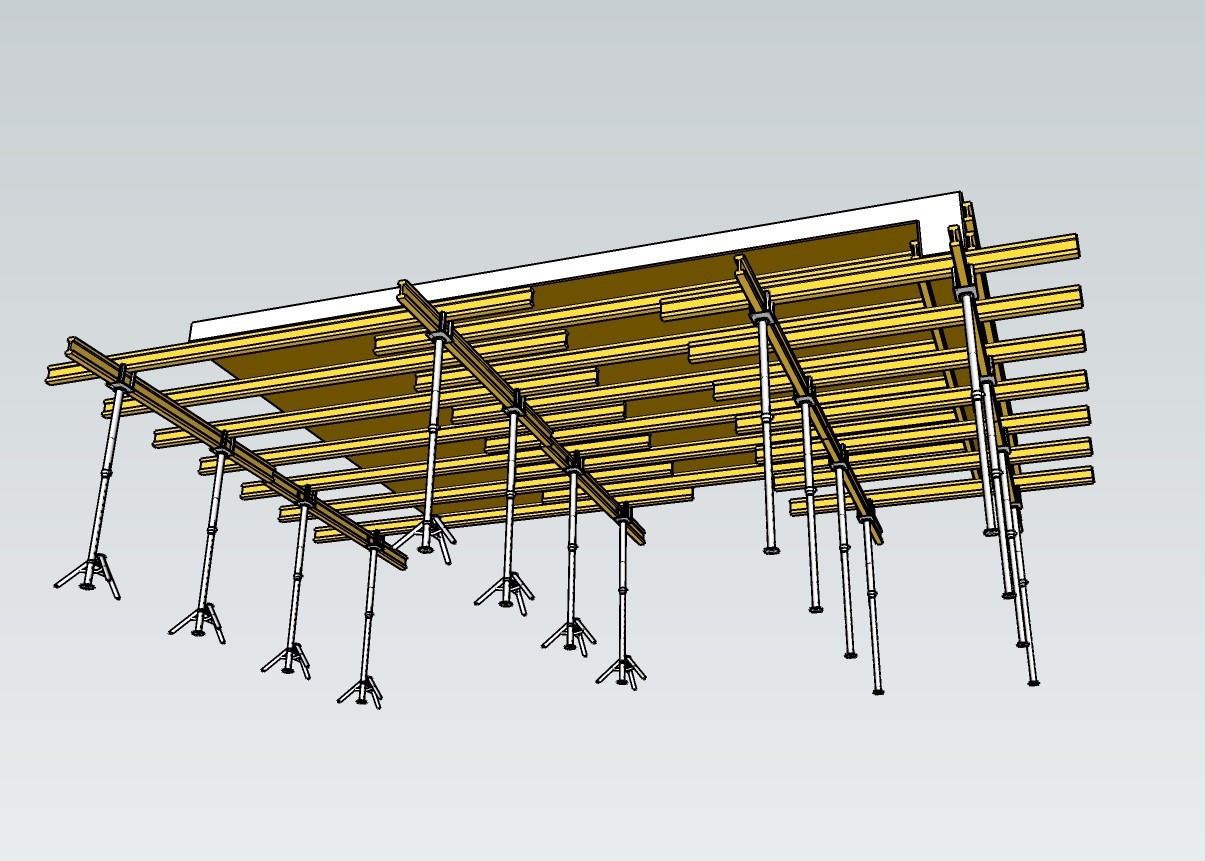

Slab formwork system is a highly efficient and convenient system for medium and large area slab project. They can be transported to next position as whole table units whether by trolley or by crane lift.Floor prop or scaffolding matches the supporting head as the supporting system. The main beam and secondary beam are timber beams, and plywood is on the topside. The system is flexible, convenient in application and can be reused.

Main components

• Adjustable props

• Shuttering

• Timber beam H20

• Connecting head

Specification
1. Table formwork dimension

    2.4mx4.8m

    2.4mx3.6m

    2.0mx4.8m

    2.0mx3.6m

2. Slab thickness up to 50cm

3. Floor height clearance up to 4m

4. Horizontal transportation via transportation fork or trolley

5. Vertcal transportation via crane lift
