High Flexibility Formwork For Concrete Walls

Product Details:
Place of Origin: Shanghai
Brand Name: ForPro
Certification: ISO and CE
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 100 sqm
Price: $100-150/Sqm
Packaging Details: Pallet
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Sqm / Year

Detail Information

OEM:: Yes Components: Steel Wailing;Plywood;H20 Timber Beam Etc.
Application: LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc.. Thickness: Plywood 15mm 18mm 21mm,Customized
Material: H20 Beam , Hot Galvanizing Steel And Plywood Color: Yellow,Blue
High Light:

concrete wall forming systems


concrete wall formwork systems


High Flexibility Formwork

Product Description

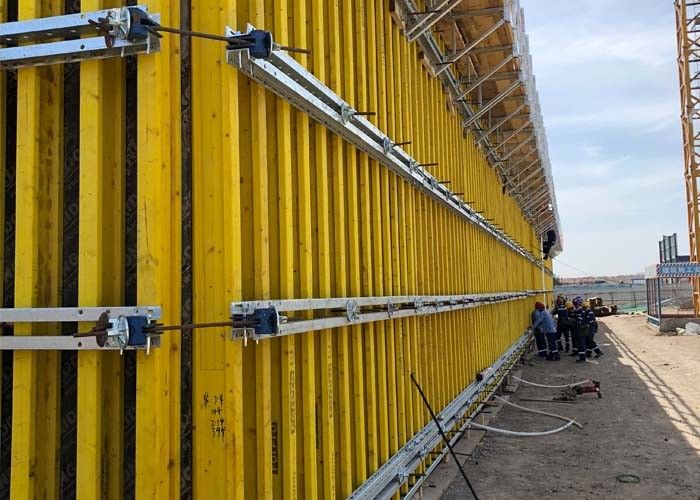

H20 Concrete Wall Formwork System With High Rigidity And Stability

High flexibility with a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.
The wall formwork elements are assembled very fast and easily by connecting of H20 beams to the steel walings by means of flange clamp.


1. The wall formwrok system is used for all types of walls and columns, with high rigidity and stability at low weight.
2. Can choose whichever form face material best meets your requirements - e.g. for smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on site or before arrival at site, saving time, cost and spaces.
5. Can match well with most Euro formwork systems.




Components Description
Wall formwork panel Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling Double steel channel
Flange clamp Galvanized To connect steel waling and H20 beams



  • Containment and factory of nuclear power plant project:
  • Dam, shiplift, power plant and coffer dam of hydropower project:
  • Pylon, pier and anchorage blocks of bridge project:
  • Core, column and elevator shaft of high-rise building:
  • LNG & Chemical tank etc.

1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.
