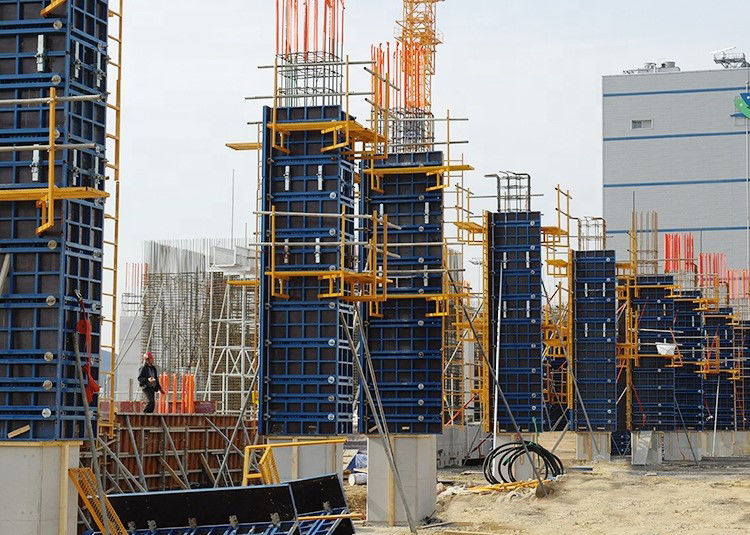

Highly Strengthened Q235 Steel Frame Formwork Modular System For Concrete Wall

Product Description

Adjustable Steel Frame Formwork With Highly Strength For Concrete Wall

Product definiation

Steel frame formwork system is mainly made up of steel frame, plywood panel,scaffold bracket,coupler,compensation waler,tie rod,lifting hook f, steel clamp and pull-push prop etc.


Features

1. The steel frame formwork is 12mm thickness, and plywood is protected by hollow steel.

2. The frame is highly strengthened, and the wall formwork can take pressure 60KN/m² while the column formwork can bear 80 KN/m².

3. As a modular system, it is flexible to be assembled, wood batten can be filed for adjustable gap.

4. The adjustable steel clamp is convenient to use and can hold formwork tightly.

5. There is a prizing part designed in the corner ,which can help to position and remove formwork easily.

6. The plywood is screwed to the frame from backward when connecting frame and plywood ,so the surface of the finished concrete is perfect.

7. The formwork series are a complete system with a full set of accessories ,and can be set up flexibly according to project demand.

Applications
