Safety Hydraulic Automatic Climbing Formwork For Tv Tower Projects

Minimum Order Quantity : 20 PCS Price : $6000-6500/PCS
Packaging Details : Pallet Delivery Time : 30-45 Work days
Payment Terms : L/C, T/T Supply Ability : 10000 PCS/Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: SCF60

Detail Information

Material: Q235 Steel,Hot Galvanizing, Wood,PP Plastic,Timber Beam H20 Color: Green,Blue,Yellow,customized
Application: Concrete Construction,Dam,Pier,bridge,Tall Building Size: Project Drawing,Standard Or Customized
Feature: Light Weight,One-time Pouring,Fast Assembly & Positioning Advantage: Easly Removable,Easy Operation Quick Climbing And High Saftly Coefficient
Surface: Galvanized Sample: Min Quantity
High Light:

auto climbing formwork system

,

automatic climbing system

Product Description

Automatic Climbing Formwork for Concrete Project with Low Labour Cost





Outline

Automatic Hydraulic Climbing Formwork (ForPro Climbing Formwork SCF60) is consisted of  formwork panel, climbing bracket ,self climber and anchoring system, the Automatic Climbing Formwork can be automatically climb up to next pouring step . It's multi-level platforms can make your site works such as formwork cleaning and reinforcement installation much safer & easier.



Feature

• Drived by hydraulic system,the formwork panel & climbing bracket can reach to the next pour as a whole.
Can be shaped into any size and shape according to different project structures even with inclination.
Speedy responsitioning and less work after concrete pouring.
Safety guarantee thanks to its system design and reliable anchoring system.
Can work with Forpro large size timber beam formwork or steel Formwork or even steel frame formwork.



Product Sketch



Safety Hydraulic Automatic Climbing Formwork For Tv Tower Projects 0



Component

ForPro large size timber beam formwork

  Include high quality plywood/Timber beam/steel waler / walerclamp/lifting bracket.

Climbing bracket

   Include Horizontal bracket/ vertical profile / diagonal strut/ vertical Waling/ panel

   travelling unit/suspension platform/top platform/ Waler hook bolt

Self climbe

   Include guiding rail /lifting device/suspension shoe/suspension bolt/safety pin/supporting carriage

Hydraulic system

  Include hydraulic cylinder, hydraulic oil line, hydraulic hose connector and hydraulic unit

Anchoring system: High strength screw/ climbing cone/ position cone/ embedded anchor rod/sealing sleeve



Technical Specification

No Technical Specification
1  Max. pouring height can reach to 6m;
2  Max. lifting capacity reach to 60KN;
3  Climbing speed can reach to 0.2m/min;
4  Main platform width up to 2.3m, formwork retraction up to 700mm
5  Min. concrete strength requirement of anchor point is 15KN in working situation;
6  6 levels of working platform



Applications fields

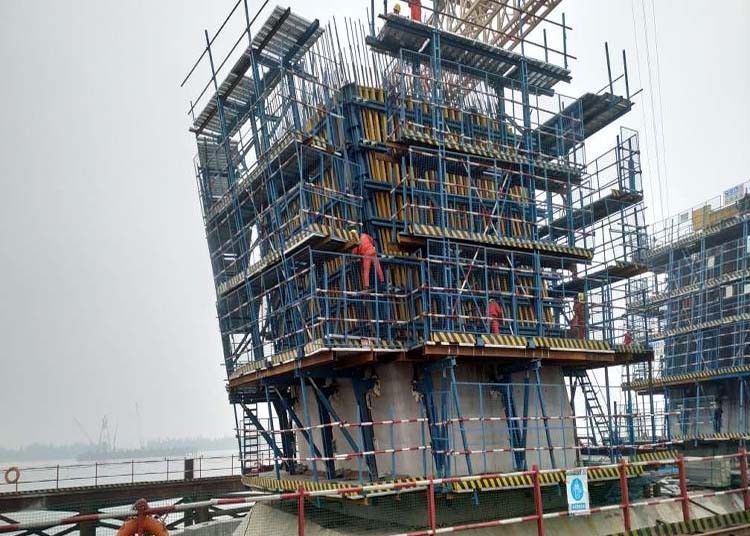

• Piers and pylons of bridge projects

Liquid Nature Gas projects

Super High-rise Building

Tv tower projects etc.





Safety Hydraulic Automatic Climbing Formwork For Tv Tower Projects 1Safety Hydraulic Automatic Climbing Formwork For Tv Tower Projects 2
