NPP Project Crane Climbing Formwork Safe Operation With 1.6 Main Platform

Product Description

F16 Climbing Formwork System for LNG Tank and NPP and Testing Tower Project

Description

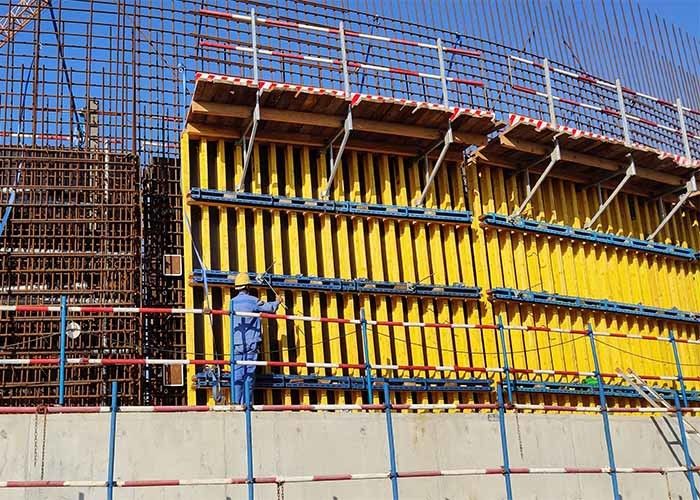

Climbing formwork F16 is a project-proven modular and low weightest climbing formwork system. It is lifted by crane and can be fast repositioned to new casting step. With only 3 main components, it is a cost-efficient climbing formwork system and can be assemled quickly. Formwork can be moved back from concrete surface 700mm and leave enough space for formwork cleaning and reinforcement installation. Embedded tie rod with high strength will tansfer all load to the concrete structure.The whole climbing formwotj is popular applied in LNG tank, Nuclear power plant project, silo project and high piers etc.

Main parts
• ForPro large-sized k timber beam H20 formwork panel

• Light-weighted F16 brackets

• Diagonal cross spindle

• 3 levels platform

Advantage
• Combination of forming wood and timber beam, any shape and any radius tank projects can be adapted.

• Economical main Platform is 1.60 wide for safe operation

• Light weight and simple parts means less labour costs and crane costs

• Very few components means easy tansportation and stock management

Technical parameter

• Min.required concrete strength in anchor point is 15kN

• Max.permissible vertical load is 45KN per bracket

• Main platform width: 1.60m

Applications Field

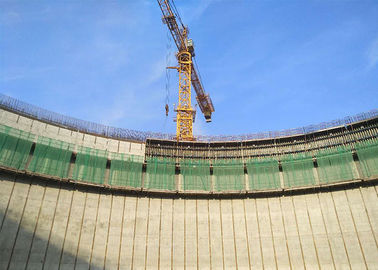

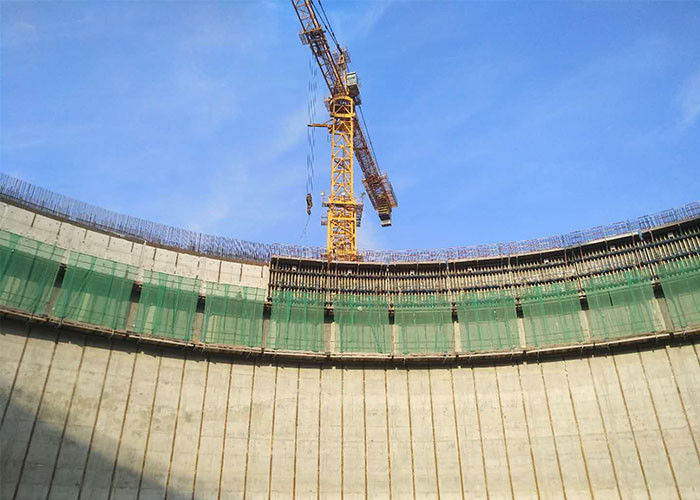

• Liquid nature gas tank

• Industrial shearing wall

• Piers

• Nuclear power plant projects

• Silo projects
