Safety Light Weight Climbing Scaffold System High Capacity for LNG Projects

Product Description

Climbing formwork F16 is a very simple and low weightest climbing formwork system, It is widely utilized in various projects like LNG tank, Nuclear power plant project, silo project and high piers etc. With only 3 main components, the F16 climbing formwork is assemled quickly.

As a kind of low weight formwork system, Lower capacity crane could be equipped on the jobsite to lift the formwork unit and other jobs. Thank for scissor spindle, 1.60m wide platform can provide title back 700mm space for formwork unit and provide enough space for formwork cleaning and reinforcement installation. 3 levels of platforms are designed to provide orient work space for formwork operation, concrete pouring,reinforcement installation and concrete surface repairing. Simple system means easy operation and easy material management and reduce labour costs and storage costs.

Components

• Big dimension formwork with timber beam H20 and plywood and steel waler
• Triangle light weight climbing brackets F16
• Sissor action spindel to trave formwork panel of 700mm distance
• Economic 1.60m width of main platform

Features

• Economical main Platform is 1.60 wide for safe operation
• Scissor action spindle can move formwork away 700mm from concrete surface
• 3 levels of platform provide orient operation space
• High capacity of 45KN verticle load per bracket and bracket

Climbing Formwork Installation Process

Applications Field

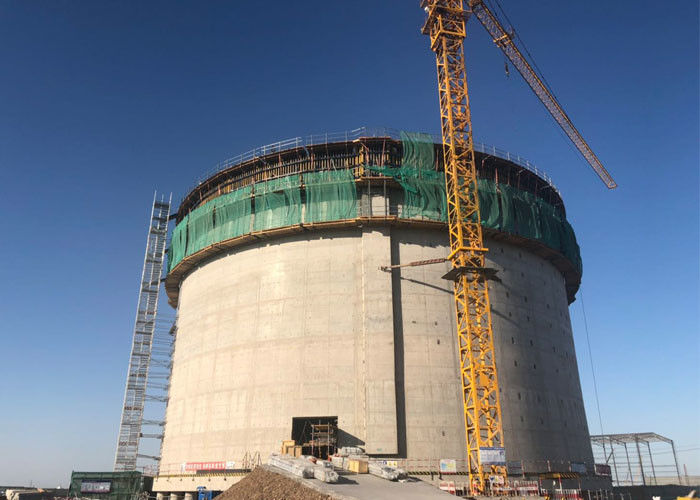

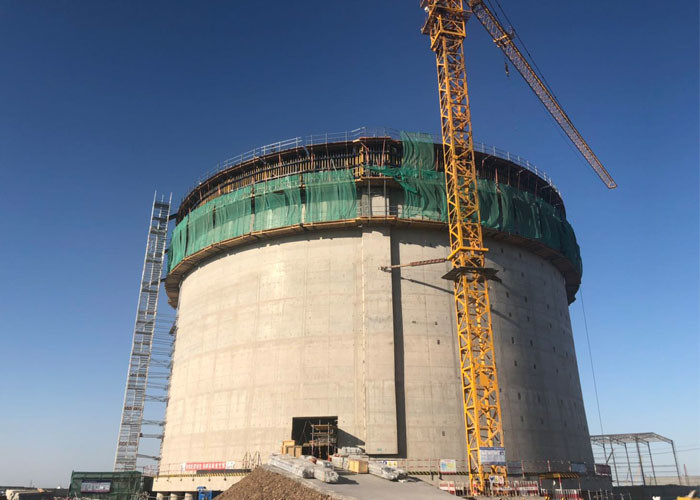

• Liquid nature gas tank
• Industrial shearing wall
• Piers
• Nuclear power plant projects
• Silo projects
