Rigid Steel Frame Formwork , Steel Framing System For Concrete Construction Wall

Minimum Order Quantity : 100 M2 Packaging Details : Pallet
Delivery Time : 25-35 Work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 100000 M2 / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Q235 Steel,Aluminium,Plywood,PP Plastic Color: Blue And Customized
Product Name: Steel Formwork, Plastic Formwork For Construction, Aluminum Template Formwork, Adjustable Beam Clamps, Heavy Duty Construction Aluminium Steel Concrete Formwork Type: Reusable Formwork, Wall Form, Modular Pannels
Sample: Free Packing: Steel Pallet
Place Of Origin: Shanghai Price: Contact Us
High Light:

steel formwork system

,

steel formwork for concrete slab

Product Description

Steel Frame Unit System For Concrete Construction Wall with Convenient Operation



Product introduction

Steel frame formwork,as a whole unit formwork system, is mainly made up of steel frame, plywood ,scaffold bracket,coupler,compensation waler,tie rod,lifting hook , steel clamp and pull-push prop etc.Because it's a standardized system that wood batten can be filed to satisfy the need of non-standard size., it is flexible to be assembled.The adjustable steel clamp is convenient to be installed and can hold the formwork frame tightly.The plywood is screwed into the frame from the backside, there will be so nail marks and surface of the finished concrete is perfect.



Features

1. Perfect for the construction of all kinds of vertical concrete structures including walls,columns,abutments,footings.
2. Highly efficient with minimum labour costs and erection time.
3. Consisting of panels that are joined with clamps to make sets. With effective and safe accessories in any type of application.
4. The steel frame is strong rigidity, and the wall formwork can take concrete pressure 60 KN/m2 while the column formwork can take 80 KN /m2.
5. The plywood is screwed into the steel frame from backside,No nail marks and better concrete surface is ensured.
6. The formwork series are a complete system with a full set of accessories, and can be set up flexibly according to project demand.

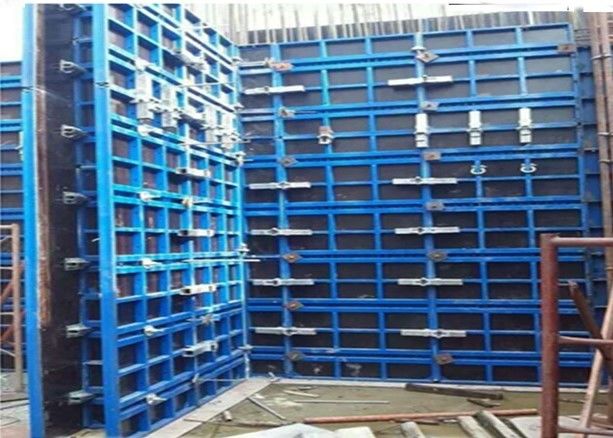

Project cases

Rigid Steel Frame Formwork , Steel Framing System For Concrete Construction Wall 0

Rigid Steel Frame Formwork , Steel Framing System For Concrete Construction Wall 1

Our Services

1.Analysis from the initial stage, and provide professional advice, consultation and formwork planning.
2.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3.Choose a best proposal to help our clients to bid for the project.
4.Start to devise the formwork detailedly according to the winning bidding.
5.Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
