FORPRO FORMWORK TECHNOLOGY (SHANGHAI) CO., LTD.

Closed Platform Jump Form System For High Silo Continuous Construction

Product Details:
Place of Origin: shanghai
Brand Name: Forpro
Certification: ISO and CE
Model Number: Slip climbing formwork system
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $2000-2200/pcs
Packaging Details: Pallet
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 Pcs / year
  • Detail Information
  • Product Description

Detail Information

Product Name: High Safety Jump Form System Material: Q235 Steel, Cylinder, Wooden Plank
Color: Blue Lacquer, Brown, Light Green,yellow Size: 2m To 3m Per Day Climbing Speed
Application: Silo, Cooling Tower,TV Tower,cement Plant, Raw Meal Silo, Testing Tower,chimney Type: Climbing Formwork,Wall Formwork, Steel Formwork,Silo Formwork,Climbing Formwork
High Light:

High Silo Construction Jump Form System

,

Cooling Tower Jump Form System

Product Description

High Safety Jump Form System For High Silo Continuous Construction





Product definition



Climbing formwork construction is a more advanced construction method in the current construction of high-rise structures. It integrates formwork support and construction scaffolding platform. It uses the completed main structure to support the elevation of the structure as the structure rises, saving a lot of The scaffolding is fast, light, easy to operate, easy to control the center line, smooth in appearance, and low in construction cost.

Components
• External and internal operation platform

External and internal suspension platform

• Slip standard formwork

• Hydraulic cylinder and hydraulic unit and hydraulic line

• Adjustable lifting brackets





Advantage and Installation procedure

High efficiency and short construction period due to continuous concreting and no treatment of horizontal concrete joint

Better concrete surface due to no construction joint during whole process

High safety due to closed platform and handrail housing

• Universal components and could be reused to next projects

• Low costs

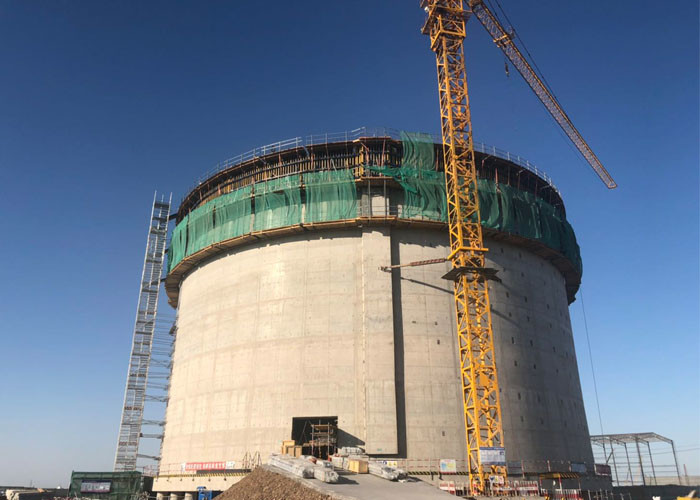

Closed Platform Jump Form System For High Silo Continuous Construction 0





Applications Field

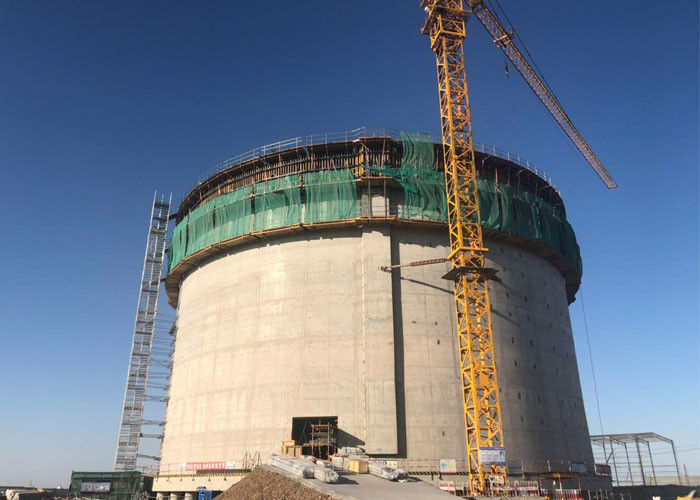

Closed Platform Jump Form System For High Silo Continuous Construction 1Closed Platform Jump Form System For High Silo Continuous Construction 2
