Flexible Large Area Formwork Panels For Bridge Pier Fast Group Equipment

Minimum Order Quantity : 100 sqm Price : $100-150/Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Hot Galvanizing Steel And Plywood Color: Yellow,Blue
Application: LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc.. Surface: Painted,Galvanized,Easily Assembled, Reuses, Universal Forming Application, Eco Friendly,
High Light:

Large Area Formwork Panels

,

Flexible Formwork Panels

Product Description

Flexible Large-area Formwork Panels for Bridge Pier Fast Group Equipment





Product Description



The large-area formwork is designed to be tailored to many very diverse types of task, which gives you ideal scope for adapting the shapes and sizes of the elements to suit your structure.High flexibility with only a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc...These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.

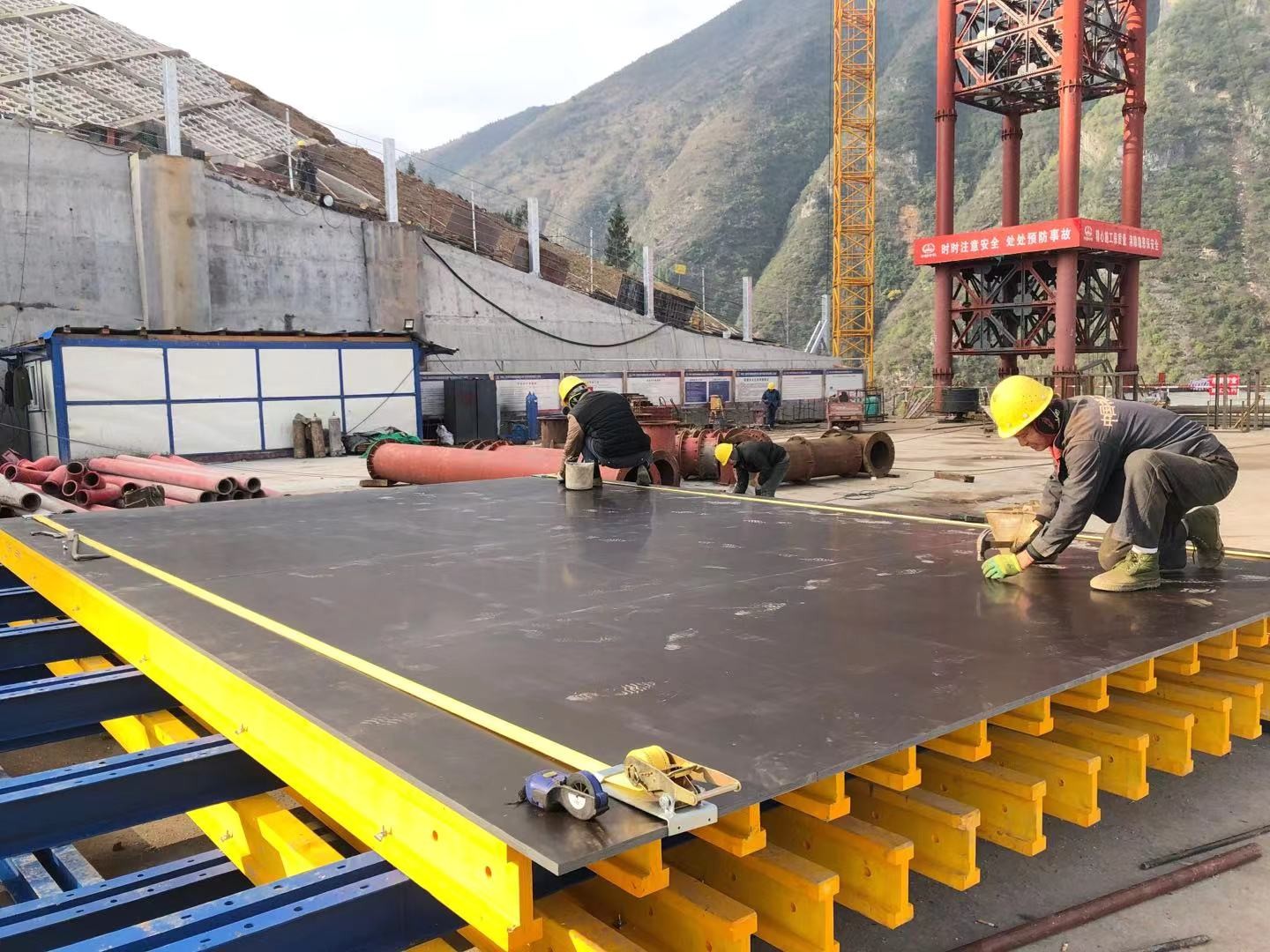

Flexible Large Area Formwork Panels For Bridge Pier Fast Group Equipment 0



Features



1. Ready to use after pre-assembly

2. Efficent and time-saving especially for large area walls where request for repeated castings

3. Can meet different fresh concrete pressure by spacing the timbers and walings

4. Can produce fair-faced concrete finishing surface.

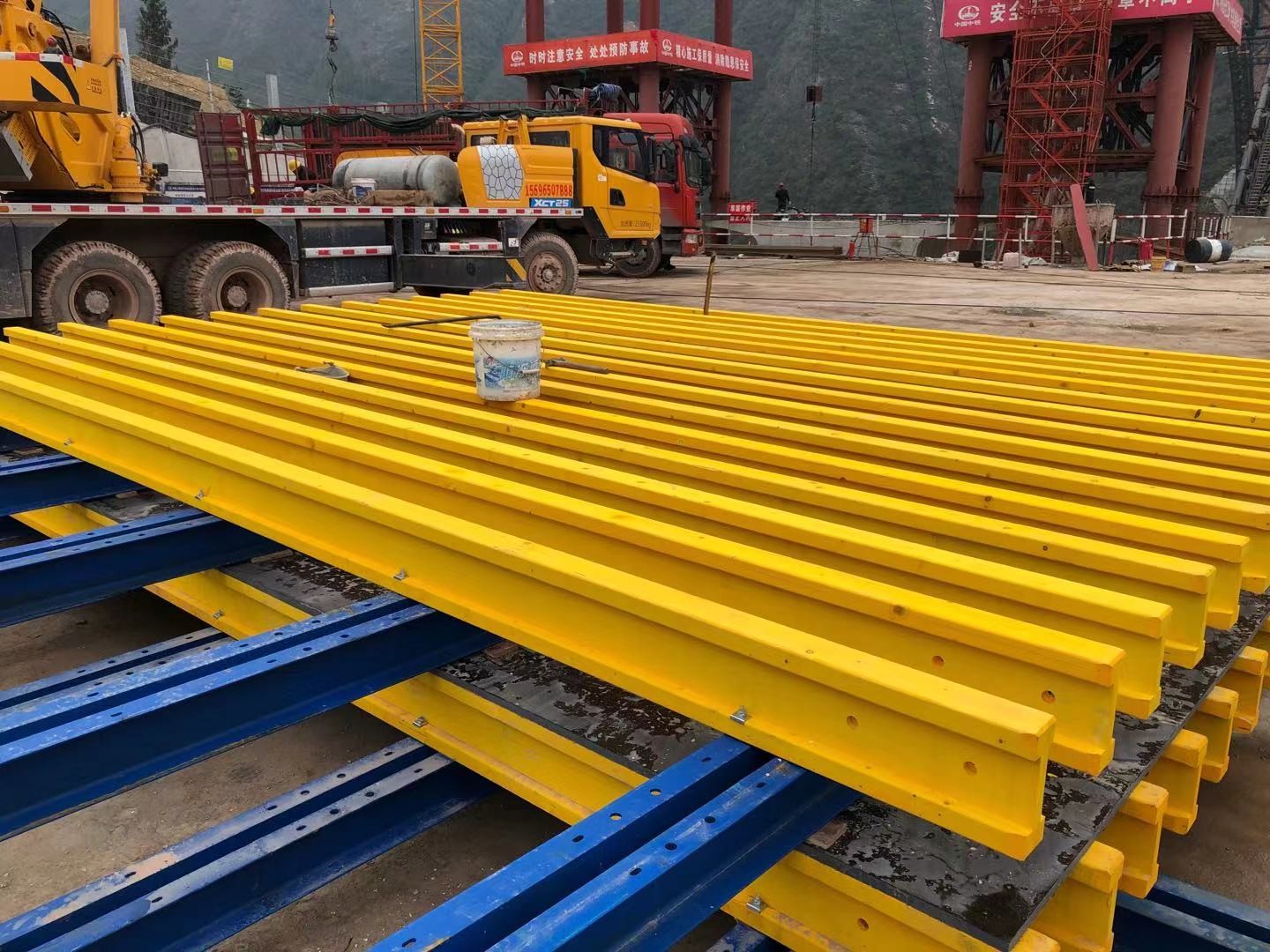

Flexible Large Area Formwork Panels For Bridge Pier Fast Group Equipment 1

Wall formwork components



Components Description
Wall formwork panel Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling Double steel channel
Flange clamp Galvanized To connect steel waling and H20 beams
Panel strut Painted
Waling connector Painted, Used for formwork panels alignment
Corner connector Painted, Used for forming inner corner formwork with wedge pins
Scaffold bracket Painted,severs as safety working platform

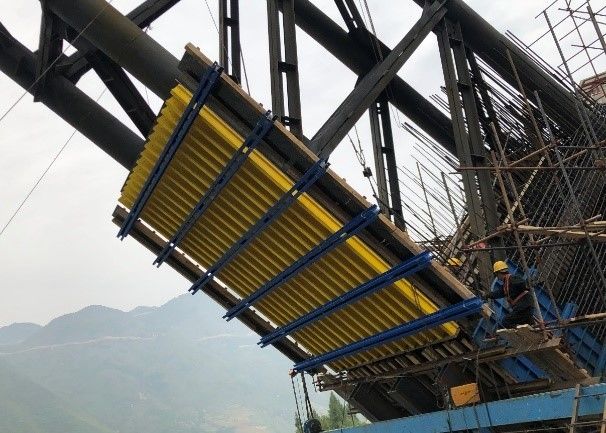

Flexible Large Area Formwork Panels For Bridge Pier Fast Group Equipment 2



Our Services


1.Analysis of the initial stage, and provide professional advice, consultation and formwork planning.
2.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3.Choose a best proposal to help our clients to bid for the project.
4.Start to devise the formwork detailed according to the winning bidding.
5.Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.



FAQ



Q 1, Are you a factory or a trading company?

Yes,We are professional factory.



Q 2.Do you have strong techinicans teams?

Yes,We have 9 project designers, 4 product development engineers and 10 technical guidance engineers. The whole team has more than 20 years of engineering experience



Q 3. Do you accept OEM services?

Yes, we could make the customized products according to your drawings.



Q 4. What is your production capacity?

3000Tons per month.



Q 5. Do you have test report?

Yes, we have done many test in Famous university--Hefei University of Technology.



Q 6. How long is your delivery.

Usually 20-25days after deposit confirmed.
