Single Sided Wall Formwork System For Metro Station

Product Description

Single-sided Wall Formwork System For Building Construction & Metro Station Walls

Outline

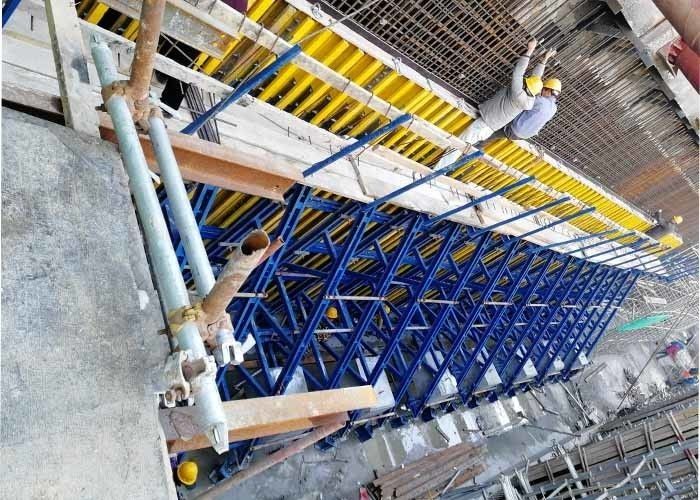

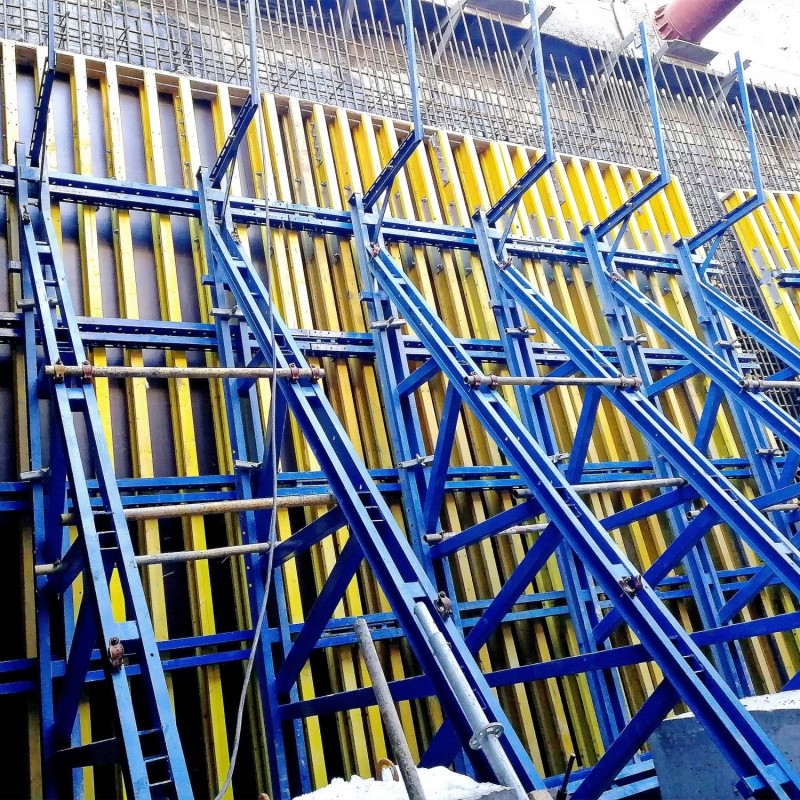

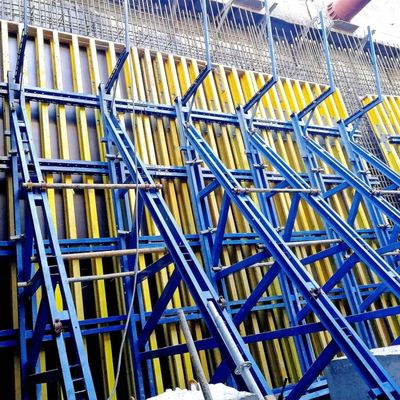

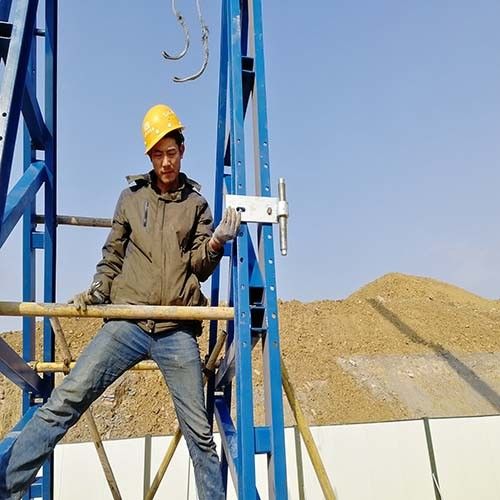

The heavy single-sided wall formwork is applied in wall structure where formwork can only be erected in one side. Concrete pressure will directly be transferred to foundation via bracket of single-sided wall formwork.The pouring height is adjustable, the maximum casting height is 8.0m.

The formwork is always used in the concrete pouring of basement, subway, sewage treatment factory, culvert, retaining wall etc.

Main parts

• Main supporting frame include

— basic supporting frame 4.5m

— basic supporting frame 5.5m

— Additional supporting frame

• Formwork panel system

Different type of panel system as Large size panel system or steel panel or steel frame panel could be selected

• Anchoring system

high strength snakelike anchor ensure high loadability and small elongation of the anchor rod.

quick detail

Single-side bracket is a kind of formwork for the concrete pouring of single-side wall. The construction is easy and fast. The components have good standard performance and versatility. The pouring height is adjustable, the maximum height of a single pouring is 8m.

The formwork is always used in the concrete pouring of basement, subway, sewage treatment factory, culvert, retaining wall and so on. The finished wall is excellent and absolutely waterproof.

Technical Specification

• Casting height can reach to 4.5m with basic supporting bracket 4.5m

• Casting height can reach to 5.5m with basic supporting bracket 5.5m

• Casting height can reach to 8.0m with combination of differenc support bracketing

• Permitted max concrete pressure is 50KN/m², special calculation needs to be executed if bigger concrete pressure is required.

• Working platform width is 750mm and permitted live load is 1.5KN/m².
