High Flexible Large Size Formwork Panels With High Load Capacity

Product Description

High Flexible Large Size Formwork Panels With High Load Capacity





Product Description

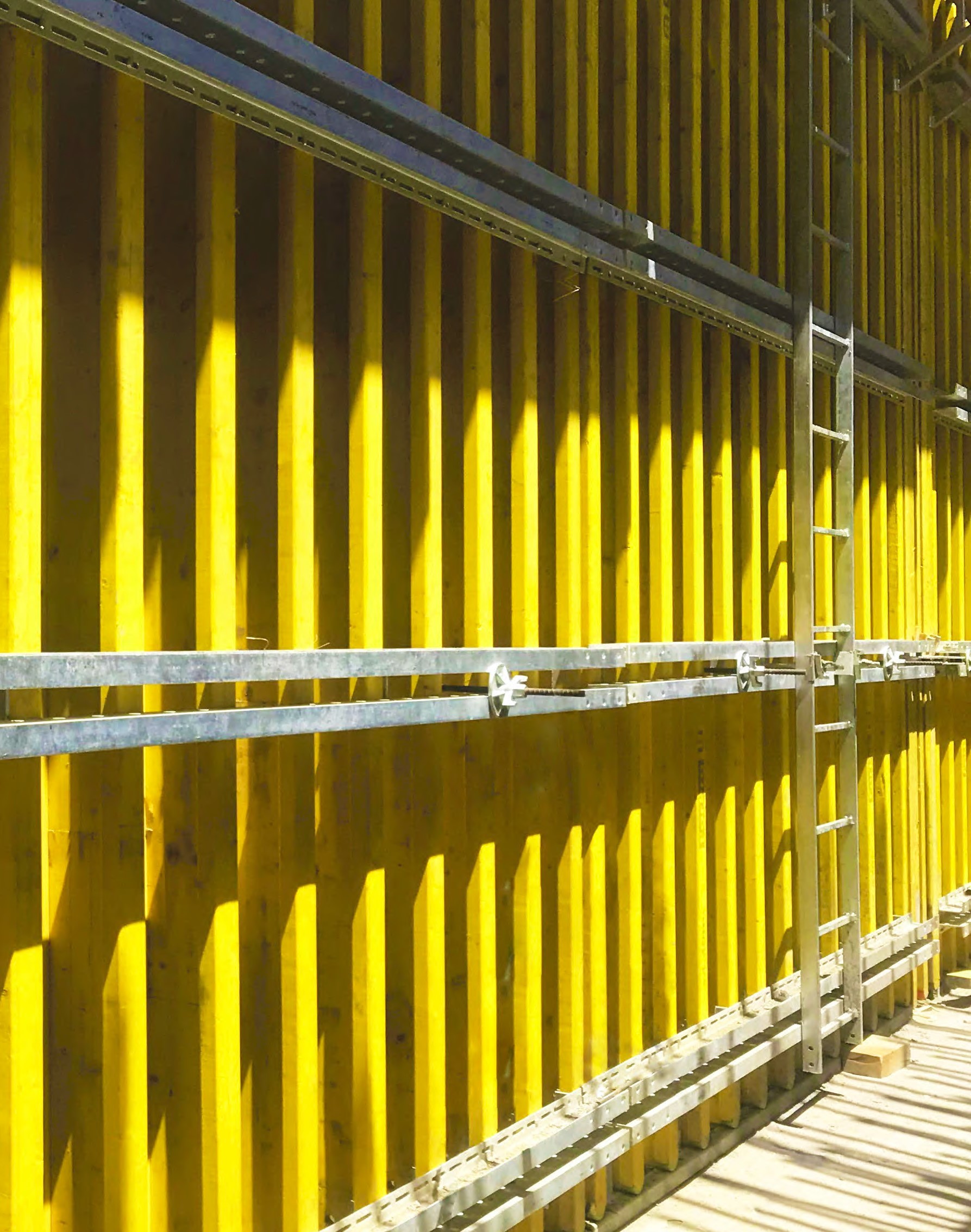

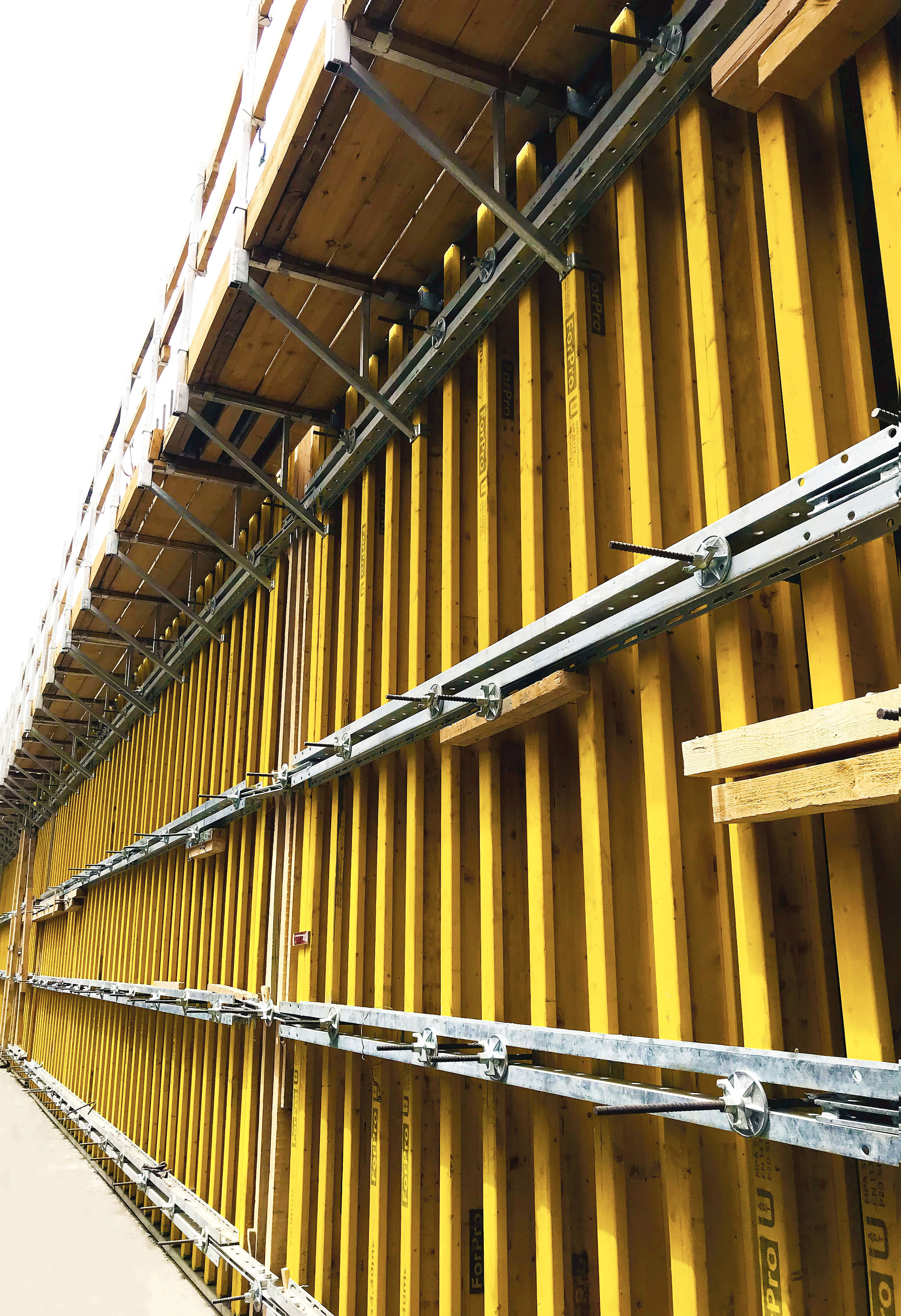

Timber beam wall formwork is used for the concrete pouring of wall. The application of large areas' formwork has greatly increased the construction efficiency and reduced the cost. The system is convenient for construction and it is easy to control the quality.


The system has two parts, formwork and pull-push props. The formwork is made of plywood, timber beam and steel waling. Pull-push props can be designed according to the project or simply select the standard props. Tie-yoke and tie-rod are used to reinforce the corner.



















Features

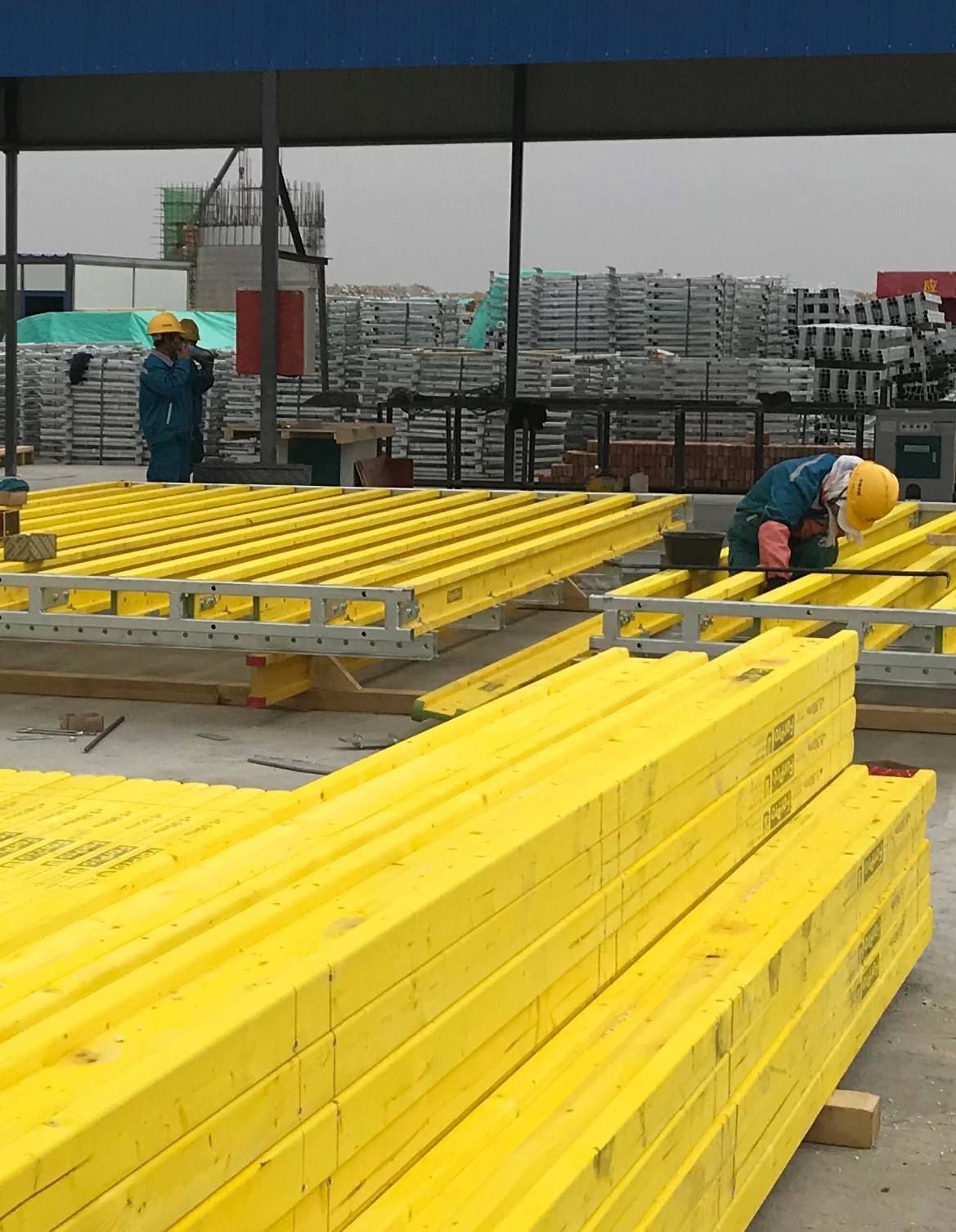

1. Ready to use after pre-assembly



2. Efficent and time-saving especially for large area walls where request for repeated castings



3. Can meet different fresh concrete pressure by spacing the timbers and walings



4. Can produce fair-faced concrete finishing surface.







Wall formwork components





Components	Description
Wall formwork panel	Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam	Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size

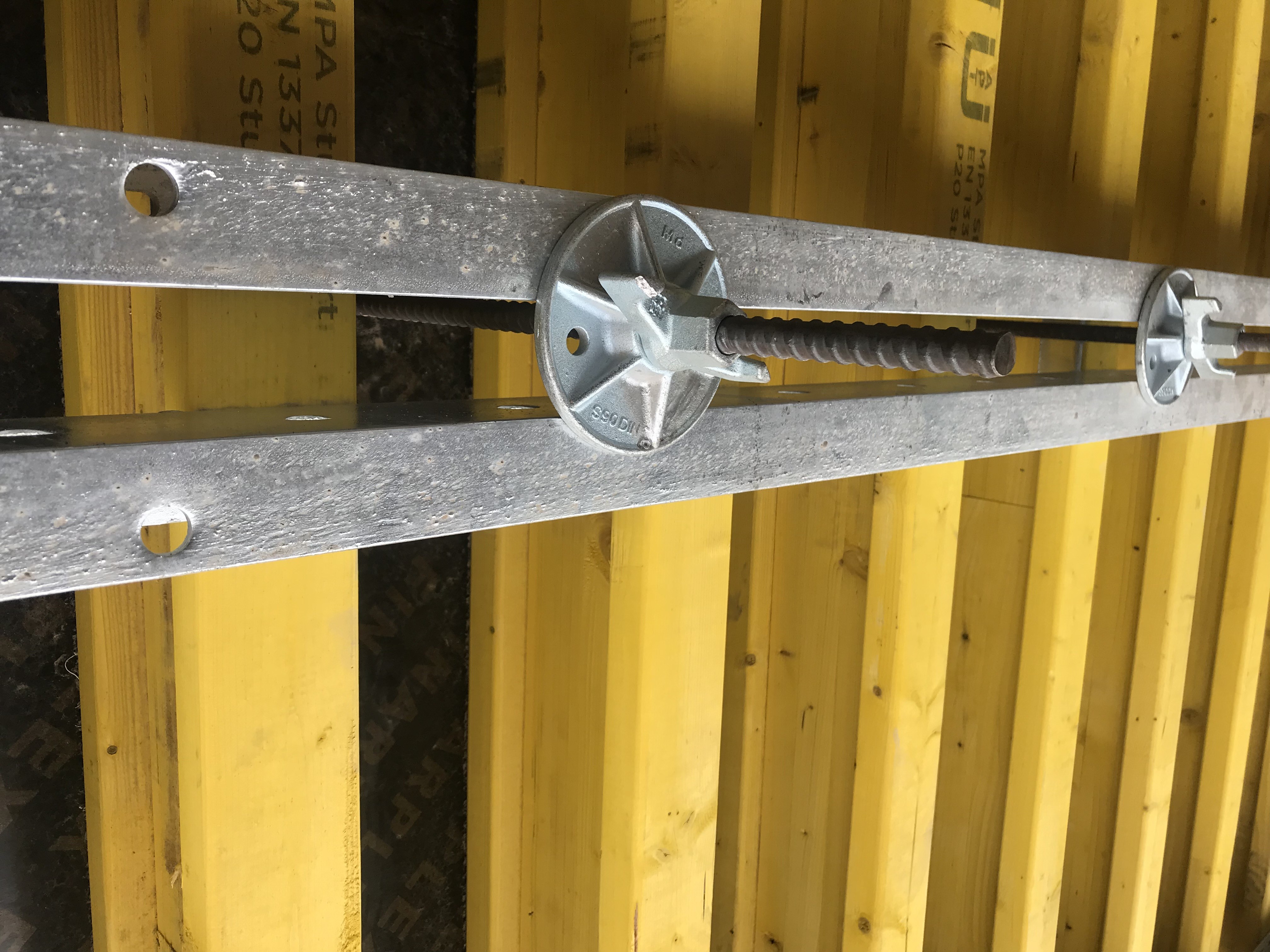

Steel waling	Double steel channel
Flange clamp	Galvanized To connect steel waling and H20 beams
Panel strut	Painted
Waling connector	Painted, Used for formwork panels alignment
Corner connector	Painted, Used for forming inner corner formwork with wedge pins
Scaffold bracket	Painted,severs as safety working platform







Our Services

1.Analysis of the initial stage, and provide professional advice, consultation and formwork planning.

2.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

3.Choose a best proposal to help our clients to bid for the project.

4.Start to devise the formwork detailed according to the winning bidding.

5.Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.









FAQ



Q 1, Are you a factory or a trading company?



Yes,We are professional factory.







Q 2.Do you have strong techinicans teams?



Yes,We have 9 project designers, 4 product development engineers and 10 technical guidance engineers. The whole team has more than 20 years of engineering experience







Q 3. Do you accept OEM services?



Yes, we could make the customized products according to your drawings.







Q 4. What is your production capacity?



3000Tons per month.





Q 5. Do you have test report?



Yes, all of our products get the famous German Rhine certifications.





Q 6. How long is your delivery.



Usually 20-25days after deposit confirmed.
