Forpro Professional Single Sided Formwork Building Material

Product Description

Outline

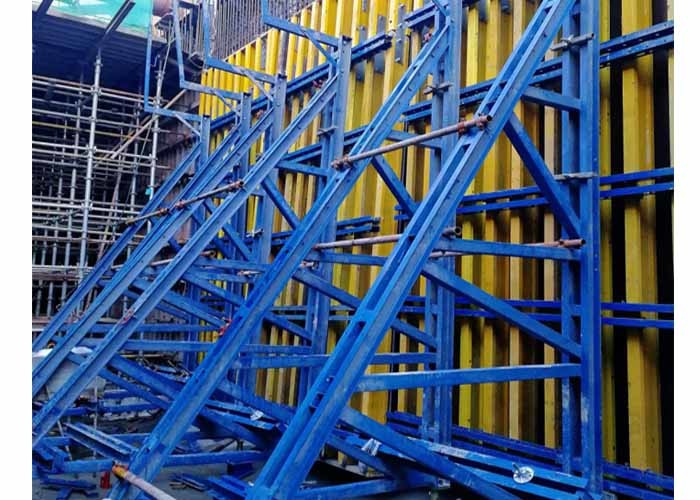

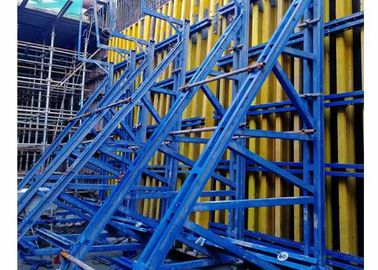

The single-sided wall formwork is designed for wall structure which formwork can only be erected in one side. Concrete pressure will be transferred to foundation via bracket of single-sided wall formwork.The pouring height is adjustable, the maximum height of a single pouring is 8.0m.

The formwork is always used in the concrete pouring of basement, subway, sewage treatment factory, culvert, retaining wall etc.

Components

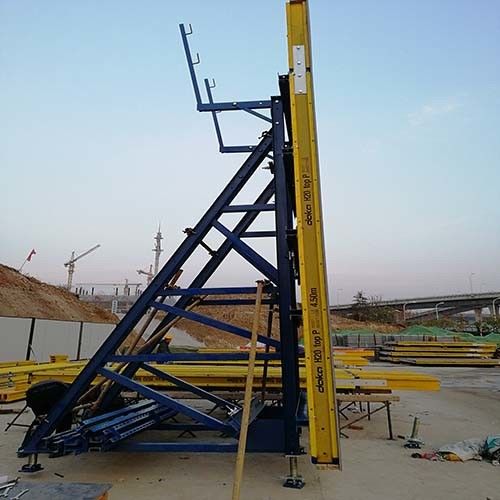

1.Supporting bracket system

Supporting bracket system include basic supporting bracket 4.5m, basic supporting bracket 5.5m and heightened supporting bracket, Different concrete height can be poured with different support bracket combination.

2.Forpro large size panel system

Thanks to large dimension size plywood, there is no vertical plywood joint and only one horizontal plywood joint for each single wall formwork unit.

3.Anchoring system

High strength snakelike anchor is applied to guarantee high loadability and small elongation of the anchor rod.

Technical Specification

• Casting height can reach to 4.5m with basic supporting bracket 4.5m
• Casting height can reach to 5.5m with basic supporting bracket 5.5m
• Casting height can reach to 8.0m with combination of differenc support bracketing
• Permitted max concrete pressure is 50KN/m², special calculation needs to be executed if bigger concrete pressure is required from specific project.
• Working platform width is 750mm and permitted live load is 1.5KN/m².

Product Charaters

• All the larger-area formwork carried on heavy-duty brackets, only a few bolts are installed at the bottom.
• The wall is waterproof due to no tie rod through the wall when concreting.
• Only 4 snakelike anchors are the wearing parts for one unit each casting step, the other parts will be reused and save costs of formwork investment.
• Universal standard components, only 3 different supporting frames can meet different pouring height, and max 8m pouring height can be realized with different brackets combination.
• Transport trolley is equipped to accelerate construction speed and save crane costs, one segment can be finished within 2 days.
• No loose part during formwork erection, jobsite is in order and neatly.

Application

• Forpro large size panel system is widely applied in various projects field.
• Containment and factory of nuclear power plant project:
• Dam, shiplift, power plant and coffer dam of hydropower project:
• Pylon, pier and anchorage blocks of bridge project:
• Core, column and elevator shaft of high-rise building:
• LNG & Chemical tank etc

Our Services

Analysis of the initial stage, and provide professional advice, consultation and formwork planning.

Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

Choose a best propasal to help our clients to bid for the project.

Start to devise the formwork detailedly according to the winning bidding.

Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
