Safety Automatic Climbing Formwork For Bridge And Super High Rise Building
Contact Person : Liu
Phone Number : 86-18011399169
WhatsApp : +8618280345525
Minimum Order Quantity : | 20 PCS | Price : | $6000-6500/PCS |
---|---|---|---|
Packaging Details : | Pallet | Delivery Time : | 30-45 Work days |
Payment Terms : | L/C, T/T | Supply Ability : | 10000 PCS/Year |
Place of Origin: | Shanghai | Brand Name: | ForPro |
---|---|---|---|
Certification: | ISO and CE | Model Number: | SCF60 |
Detail Information |
|||
Material: | Q235 Steel,Hot Galvanizing, Wood,PP Plastic,Timber Beam H20 | Color: | Yellow,purple,matte Black,etc. |
---|---|---|---|
Application: | Bridge Pylon And High Piers,Testing Tower ,chimney Projects | Size: | 60*60cm,95*95cm,etc. |
Feature: | Anti Erosion, Anti Corrosion | Advantage: | Removable,Easy Operation Quick Climbing And High Saftly Coefficient |
Surface: | Hot Galvanized | Function: | Decorative,protective Or Isolated |
High Light: | CE Automatic Climbing Formwork system,formwork for high rise building 60*60cm,high rise formwork 95*95cm |
Product Description

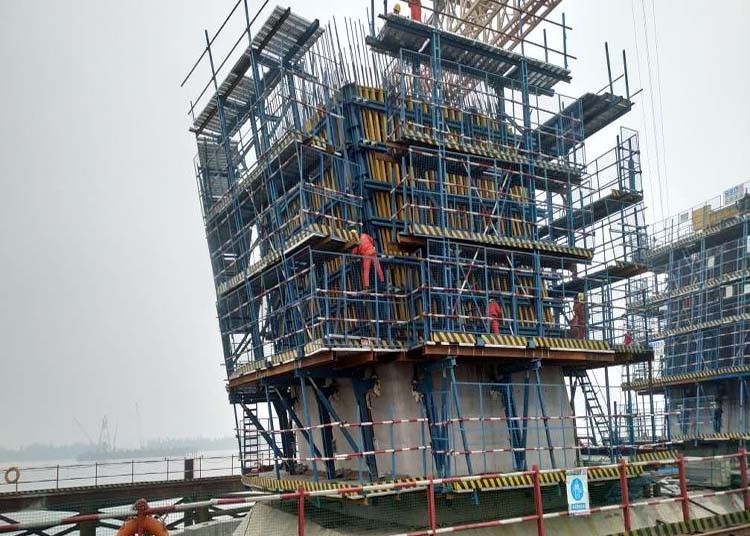

Formwork design Automatic Climbing Formwork For Bridge And Super High-rise Building
Outline
Self-climbing formwork system support structures for cores, piers, pillars, silos will be constructed independently of cranes and weather. The formwork and platform will climb automatically with the help of hydraulic system and hoisting mechanism. Rails and brackets can be climbed alternately. The whole climbing process is fast and stable, and the climbing operation is efficient and safe. This is the best choice for concrete construction of high-rise buildings and bridge projects.
Component
• ForPro large size timber beam formwork
High quality plywood/Timber beam/steel waler/walerclamp/lifting bracket.
• Climbing bracket
Horizontal bracket/ vertical profile/ diagonal strut/ vertical waling/ panel/travelling unit/suspension platform/top platform/ Waler hook bolt
• Self climber
Guiding rail /lifting device/suspensionshoe/suspension bolt/safety pin/supporting carriage
• Hydraulic system
Hydraulic cylinder, hydraulic oil line, hydraulic hose connector and hydraulic unit
• Anchoringsystem: High strength screw/ climbing cone/ position cone/ embedded anchor rod/sealing sleeve
Technical Specification
Pemissable horizontal load | 60KN |
concrete strength | 15MPa |
platform width | 2300mm |
casting height | 6000mm |
Applications | High rise building,TV towers |
Initial mounting process of SCF60
Our Services
1. Analysis the bidding inviation documents and provide professional advice consultation and formwork planning.
2. Provide formwork tendering solution and preliminary layout supply&demand.
3. Choose a best propasal to help our clients to bid for the project.
4. Start to design formwork detailedly according to the winning bidding.
5. Provide shop and assembly drawings of the formwork, gives on-site advice and continuous support service.
