Beam and Slab Formwork Systems For Floor Slab Construction
Beam and Slab Formwork Systems For Floor Slab Construction
Contact Now

Beam and Slab Formwork Systems For Floor Slab Construction

Minimum Order Quantity : 1000 sqm Packaging Details : Pallet
Delivery Time : 25-30 Work days Payment Terms : L/C, T/T
Supply Ability : 100000 M2 / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Timber beam table formwork

Detail Information
Material: Wooden, Q235 Steel,Q345 Steel Application: Concrete Construction, Slab Pouring, Building Exterior Wall, Construction And Reinforced Concrete Wall, Slab Formwork
Feature: Efficient, Easy Operation, High Safety Performance Thickness: 12mm Plywood
Surface: Glossy For Formwork System
High Light:

Beam and Slab Formwork Systems

,

12mm Plywood Slab Formwork Systems

Product Description

Beam and Slab Formwork Systems For Floor Slab Construction



Outline

It is a table style slab formwork system which can be assemblied and dismantled with high efficiency, simple operation and more safety. Because of the formwork panel can be early stripped (Keep the shoring system will be not moved) when the concrete slab has basic solid instead of 100% solidification. Only one set of panels are required for multi-floor high rise building concrete slab structure pouring, two sets or three sets steel prop are used to match the panels according to the construction speed and method of the actual operation. That means the formwork material reduce over 50%, not only reduce the cost, but also working and material waste are reduced too, meanwhile means more safety.



Main components

• Formwork Panel

• Drophead steel prop

• Telescopic brace beam and auxiliary beam


Specification


Model

 Dimention Area Unit weight
Kg lbs
TF1812 1800X1200mm 2.16 45 97
TF1809 1800X900mm 1.62 38 83.77
TF1806 1800x600mm 1.08 30 66.14
TF1512 1500X1200mm 1.8 40.6 89.51
TF1509 1500X900mm 1.35 33 72.75
TF1506 1500X600mm 0.9 25 55.11
TF1212 1200X1200mm 1.44 32 70.55
TF1209 1200X900mm 1.08 26 57.32
TF1206 1200X600mm 0.72 22 48.5
TF0909 900X900mm 0.81 22 48.5
TF0906 900X600mm 0.54 18 39.68
TF0606 600X600mm 0.36 13.5

29.76



1. Slab thickness up to 350cm

2. Floor height clearance up to 3.6m

3. Horizontal transportation via transportation fork or trolley

4. Vertcal transportation via crane lift



Applications

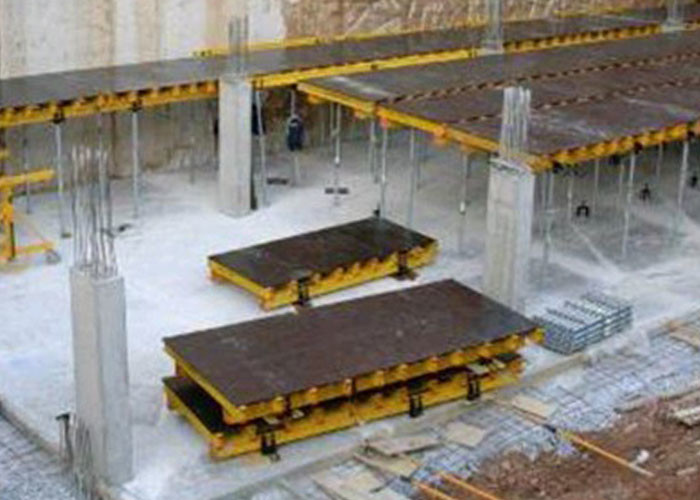

Beam and Slab Formwork Systems For Floor Slab Construction 0

Beam and Slab Formwork Systems For Floor Slab Construction 1



FAQ
Q 1, Are you a factory or a trading company?
Yes,We are professional factory.



Q 2.Do you have strong techinicans teams?
Yes,We have 9 project designers, 4 product development engineers and 10 technical guidance engineers. The whole team has more than 20 years of engineering experience



Q 3. Do you accept OEM services?
Yes, we could make the customized products according to your drawings.



Q 4. What is your production capacity?
3000Tons per month.



Q 5. Do you have test report?
Yes, we have done many test by TUV Rheinland(Shanghai) Co.,Ltd.



Q 6. How long is your delivery.
Usually 20-25days after deposit confirmed.
