Professional Concrete Column Formwork System With H20 Timber Beam And Plywood
Contact Person : Liu
Phone Number : 86-18011399169
WhatsApp : +8618280345525
|Minimum Order Quantity :||100 Sqm||Packaging Details :||Pallet|
|Delivery Time :||15-20 work days||Payment Terms :||L/C, T/T|
|Supply Ability :||1000000 Sqm / year|
|Place of Origin:||shanghai||Brand Name:||ForPro|
|Certification:||ISO and CE||Model Number:||customized|
|Material:||Q235 Steel, Timber Beam,Plywood||Color:||Customized|
|Size:||Customized||Weight:||45kg/m2 As Usual|
Construction Circular Formwork System 45kg/m2,
80cm Circular Formwork System

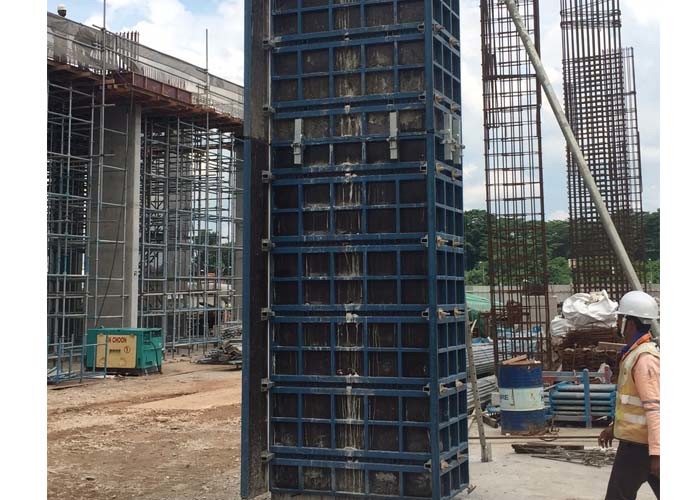

Efficient Building Construction Circular Formwork System
The easy universal panels permit flexible accommodation to column cross-sections of up to 80cm x 80cm by width 95cm panel (105cm x 105cm by width 120cm panel ) in 5 cm increments. By combining panels with heights of 3.00m. 1.2m and 0.6m, a height grid of 30 cm is possible.
The steel waling of standard adjustable column formwork has three specifications. This can satisfy the need of concreting of column with waling length from 200mm to 1200mm.
|The length of steel waling(mm)||The side length of column(mm)|
|1500 & 1800||800~1200|
|1500 & 1200||400~800|
|1200 & 900||200~400|
1. Can create any shape and size of wall and column formwork with any thickness.
2. Can choose whichever form face material best meets your requirements - e. G. For smooth fair-faced concrete.
3. Can be customized as all the length you need.
