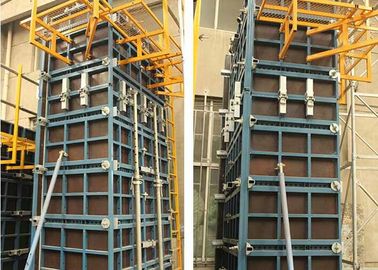

Standard Timber Beam H20 And Steel Waler Circular Column Formwork Concrete System
Standard Timber Beam H20 And Steel Waler Circular Column Formwork Concrete System
Contact Now

Standard Timber Beam H20 And Steel Waler Circular Column Formwork Concrete System

Minimum Order Quantity : 100 Sqm Price : $100-150 / Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Timber Beam H20

Detail Information
Features: Simple And Efficient Operation Color: Customized
Size: Universal Forming Weight: 45kg/m2 As Usual
Height: Customized
High Light:

Waler Circular Column Formwork Concrete System

,

45kg/m2 Column Formwork Concrete System

Product Description

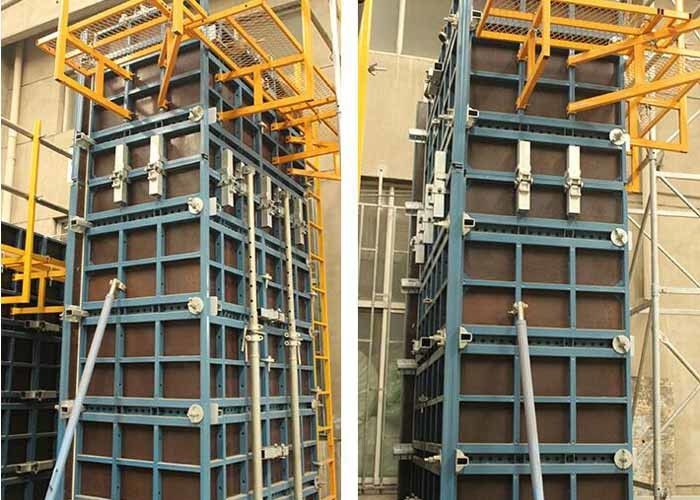

Standard Timber Beam H20 And Steel Waler Circular Column Formwork Concrete System

The easy universal panels permit flexible accommodation to column cross-sections of up to 80cm x 80cm by width 95cm panel (105cm x 105cm by width 120cm panel ) in 5 cm increments. By combining panels with heights of 3.00m. 1.2m and 0.6m, a height grid of 30 cm is possible.

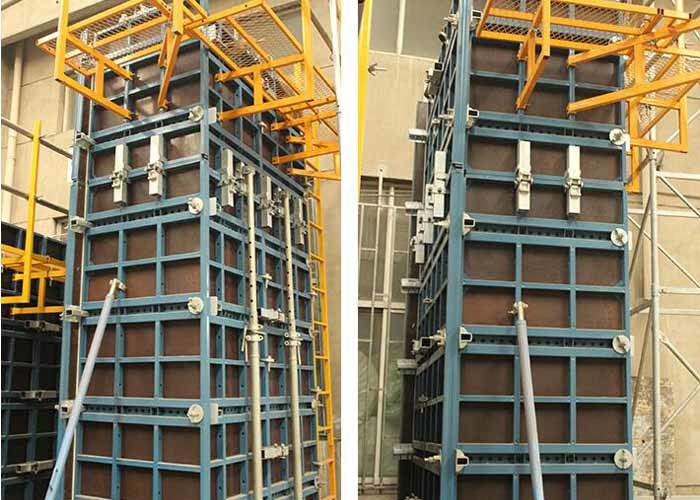

Standard Timber Beam H20 And Steel Waler Circular Column Formwork Concrete System 0



Main Parts

No. Product Name
1 panel
2 clamp
3 support
4 platform
5 ladder
6 handrail





Technical Specification

NO. Features
1 Max. permissable pressure is 90kN/m2
2 Height rangeability: 3-6m
3 Flexible adjustment to fit different column dimension
4 Weight: 45kg/m2
5

Time for dismantling and move: 20-30 minutes per set
