China Wall Formwork System manufacturer

Modular Climbing Scaffolding System , Crane Lifted Climbing Formwork

Product Details:
Place of Origin: shanghai
Brand Name: Forpro
Certification: ISO and CE
Model Number: Crane lifted formwork CF240
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece
Price: $3900-4500/ piece
Packaging Details: Pallet
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 1000 Piece / year

Detail Information

Material: Q235 Steel, Timber Beam,Plywood Color: Silver, Yellow,brown
Size: Width 2400mm Application: Tower, Core Of Highrise Building, Shiplift
Product Name: Crane Lift Climbing Formwork Type: Wall Formwork, Steel Formwork,Column Formwork,Climbing Formwork
High Light:

climbing scaffolding system

,

self climbing scaffold system

Product Description

Intelligent Modular Climbing Scaffolding with Formwork to Construct High-rise Building



Description

The Climbing Formwork CF240 is a crane lifted climbing formwork. With its high loadability, it is designed for precise and convienient operation for all high-rise projects, It is an ideal option for pylons,piers and towers projects etc. It provides multi level platform  for formwork operation, concrete pouring,reinforcement installation and concrete surface repairing. The whole system is anchored in the stucture during the whole working process, the modular elements can be adjusted to fit any angle of wall inclination.

Elements

• Large area formwork panel or steel frame formwork or steel formwork

• Modular climbing brackets CF240

• Panel travelling unit

• Anchoring system 20.0



Features

• Platform width: 2.40m

• Formwork move back 70cm from the concrete wall, leave enough space for formwork cleaning

• 3 or 4 levels of platform level can be adjusted to meet structure inclination up to 150

• Climbing scaffolding is safely anchored on concrete structure with high strength anchor parts.

• ​Together with self climber to work as self climbing formwork system

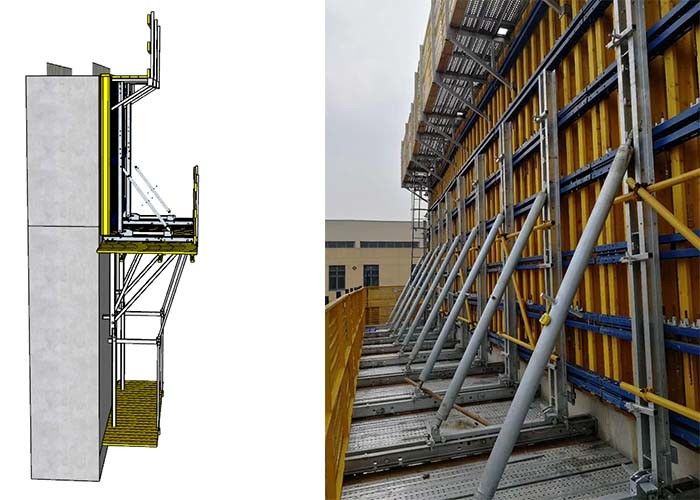

Climbing Formwork Installation Process

Modular Climbing Scaffolding System , Crane Lifted Climbing Formwork 0

Applications scope

Modular Climbing Scaffolding System , Crane Lifted Climbing Formwork 1



Forpro Service

Provide support in every stage of projects
1.Provide cosult when client take part in projects bid invitation.
2.Provide optimized formwork tender solution to assitant client to win the project.

3.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

4.Start to design the formwork detailedly according to the winning bidding.
5.Provide economic formwork solution package and provide continous on-site support service.
