ForPro Automatic Climbing Formwork For Bridge And Super High Rise Building Construction

Minimum Order Quantity : 20 Pcs Price : $6000-6500/pcs
Packaging Details : Pallet Delivery Time : 30-45 Work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000 PIN/Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: SCF60

Detail Information

Material: Q235 Steel,Hot Galvanizing, Wood,PP Plastic,Timber Beam H20 Color: Green,Blue,Yellow,customized
Application: Concrete Construction,Dam,Pier,Bridge,Tall Building Size: Operation Platform 2300mm,Standard Or Customized
Feature: Light Weight,One-time Pouring,Fast Assembly &amp Surface: Galvanized, Anti-corrosion Coating, Glossy
High Light:

auto climbing formwork system

,

self climbing system

Product Description



Hydraulic Self-climbing Formwork For Bridge And Super High-rise Building Construction



Outline

The hydraulic auto-climbing formwork system is a wall-attached self-climbing formwork system, which is powered by its own hydraulic lifting system. The formwork system includes  hydraulic cylinders, an upper and lower lifting device, which can switch the lifting power to the main bracket or climbing rail. With the power by the hydraulic system, the main bracket and climbing rail are able to climb respectively. Therefore, the complete hydraulic auto-climbing system climbs steadily without crane. No other lifting device is needed when using the hydraulic auto-climbing formwork, which has the advantages of being easy to operate, fast and safe in the climbing process. It is the first-choice formwork system for high-rise building and bridge construction.



Sketch of SCF60



ForPro Automatic Climbing Formwork For Bridge And Super High Rise Building Construction 0





Main system

• ForPro large size timber beam formwork

 Plywood/Timber beam/steel waler/walerclamp/lifting bracket.

• Climbing bracket

 Horizontal bracket/ vertical profile/ diagonal strut/ vertical Waling/ panel/travelling unit/suspension platform/top platform/ Walerhook bolt.

• Self climbe

 Guiding rail /lifting device/suspensionshoe/suspension bolt/safety pin/supporting carriage

• Hydraulic system

 Hydraulic cylinder, hydraulic oil line, hydraulic hose connector and hydraulic unit

• Anchoringsystem

 High strength screw / climbing cone/ position cone/ embedded anchor rod/sealing sleeve.



Technical Specification

1. Working load, system weight and wind load is entirely supposed by the anchor system, scaffolding is not needed during the construction;
2. A single pouring height can reach to 6 meters, and the formwork can move backward about 700mm;
3. High standard elements can be widely used;
4. The formwork can press the finished concrete tightly to avoid dislocation or leakage.
5. The suspended platform is convenient for removing the anchor system and treating the concrete surface.

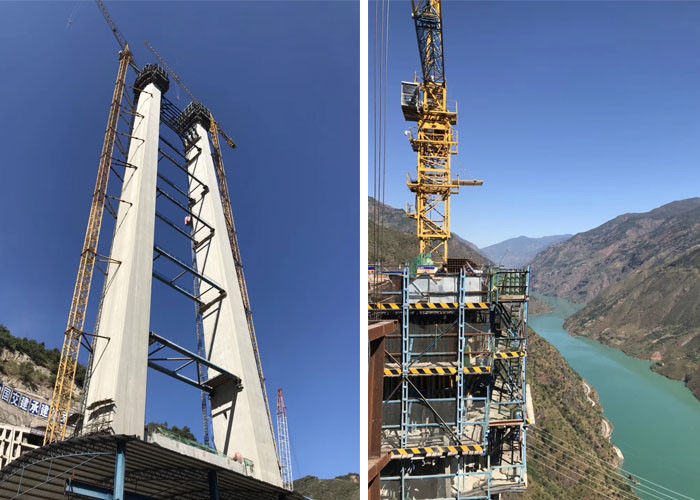

Applications

1. Bridge pier

2. LNG

3. Super High-rise Building etc.

ForPro Automatic Climbing Formwork For Bridge And Super High Rise Building Construction 1

ForPro Automatic Climbing Formwork For Bridge And Super High Rise Building Construction 2



Our Services
1. Analysis from initial stage and provide professional advice consultation and formwork planning.
2. Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3. Choose a best propasal to help our clients to win the project.
4. Devise the formwork detailedly according to the winning bidding.
5. Provide  formwork design and provides on-site advice and continuous support service.
