Universal Steel Formwork For Concrete Slab And Wall

Minimum Order Quantity : 100 M2 Packaging Details : Pallet
Delivery Time : 25-35 Work days Payment Terms : L/C, T/T
Supply Ability : 100000 M2 / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Q235 Steel,Aluminium,Plywood,PP Plastic Color: Blue And Customized And Brown
Product Name: Steel Formwork, Plastic Formwork For Construction, Aluminum Template Formwork, Adjustable Beam Clamps, Heavy Duty Construction Aluminium Steel Concrete Formwork Type: Reusable Formwork, Panel Slab Formwork, Wall Form, Modular Pannels
Sample: Free Packing: Steel Pallet
Size: Modular Size Name: Concorete Formwork,steel Frame Formwork,Patented Polypropylene Light Formwork Panel
High Light:

steel formwork for concrete slab

,

steel formwork for concrete

,

Universal Steel Formwork

Product Description

Light weight universal Steel Frame Formwork With Plywood For Concrete Slab and Wall



Outline

Forpro steel frame formwork is a light weight  panel system, 12mm plywood is riveted into steel frame. As a modular panel system, Small size and large size panel is completely prepared for different type of wall structures. With high rigidity, the panel can take fresh concrete pressure up to 50kN/m2, Holes of tie rod is pre-designed on the steel grid or frame profile. The formwork could be mannual lifted for small size panel, or crane lift for large size panel of pre-assembly unit.



Technical data

Unit weight is approx. 40kg/m2

Panel widths is up to 1.50m and height is up to 3.0m

Maximum permissible concrete pressure: 50KN/m2;

Shift wheel device is available for moving formwork unit to new position.

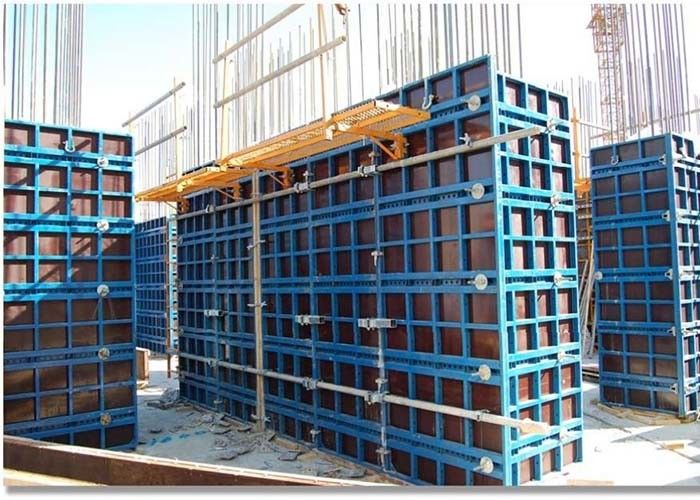

Universal Steel Formwork For Concrete Slab And Wall 0



Product description of Steel Frame Formwork

Description Panel size weight   Description Panel size weight
WxH (mm) (kg) WxH (mm) (kg)
 P6030  600x300    10.5  P12060  1200x600    29.6
 P6060   600x600    15.8  P120120  1200x1200    53.0
 P60120  600x1200    28.9  P120240  1200x2400  104.5
 P60240  600x2400    51.8  P120300  1200x3000  142.0
 P60300  600x3000    78.0  P15060  1500x600    48.4
 P9560  950x600    24.9  P150120  1500x1200    90.0
 P95120  950x1200    43.0  P150240  1500x2400  163.0
 P95240  950x2400    81.5  P150300  1500x3000  171.0
 P95300  950x3000  113.0



Product character

• Easy and simple handling

• Fast panel connection

• High rigidity and long life reuse time



Application field

Residential housing project

Municipal engineering

Industrial building

Shopping mall



Universal Steel Formwork For Concrete Slab And Wall 1

Our Services

1.Analysis from the initial stage, and provide professional advice, consultation and formwork planning.
2.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3.Choose a best proposal to help our clients to bid for the project.
4.Start to devise the formwork detailedly according to the winning bidding.
5.Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
