H20 Wall Form System , Core Wall Formwork For All Types Of Walls and Columns

Minimum Order Quantity : 100 sqm Price : $100-150/Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Features: Low Weight,Stiffness Big Material: Hot Galvanizing Steel And Plywood
Key Word:: Wall Formwork System Application: For Wall, Column
Plywood Size: Customized Thickness: Plywood 15mm 18mm 21mm,Customized
Components: Steel Wailing;Plywood;H20 Timber Beam Etc. Usage: Concrete Construction Support,beam,wall,Forming Concrete Slab
High Light:

concrete wall forming systems

,

formwork for concrete walls

Product Description

H20 Wall Formwork Systems is Used for All Types of Walls And Has Stability at a Relatively Low Weight

High flexibility with a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc.. These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.
The wall formwork elements are assembled very fast and easily by connecting of H20 beams to the steel walings by means of flange clamp.



Advantages
1. The wall formwrok system is used for all types of walls and columns, with high rigidity and stability at low weight.
2. Can choose whichever form face material best meets your requirements - e.g. for smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on site or before arrival at site, saving time, cost and spaces.
5. Can match well with most Euro formwork systems.



H20 Wall Formwork Components



Components Description
Wall formwork panel Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling Double steel channel
Flange clamp Galvanized To connect steel waling and H20 beams
Panel strut Painted
Waling connector Painted, Used for formwork panels alignment
Corner connector Painted, Used for forming inner corner formwork with wedge pins
Scaffold bracket Painted,severs as safety working platform


H20 Wall Form System , Core Wall Formwork For All Types Of Walls and Columns 0

H20 Wall Form System , Core Wall Formwork For All Types Of Walls and Columns 1



Features

* Ready to use after pre assembly.

* Efficent and time saving especially for large area walls where request for repeated castings.

* Can meet different fresh concrete pressure by spacing the timbers and walings.

* Can produce fair-faced concrete finishing surface.



Applications

  • Containment and factory of nuclear power plant project:
  • Dam, shiplift, power plant and coffer dam of hydropower project:
  • Pylon, pier and anchorage blocks of bridge project:
  • Core, column and elevator shaft of high-rise building:

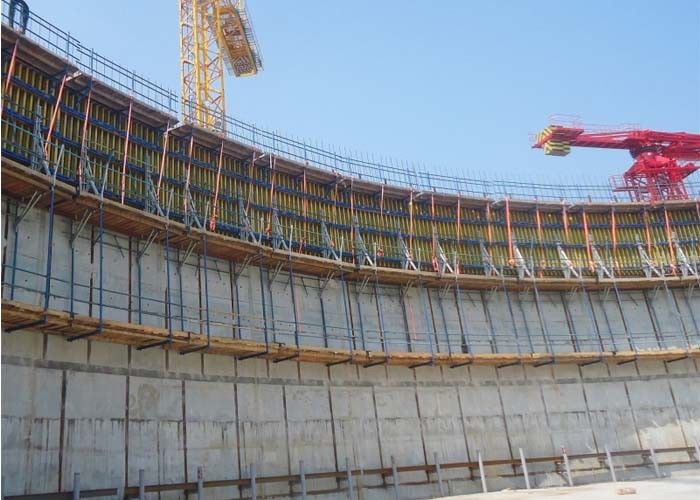

  • LNG & Chemical tank etc.

H20 Wall Form System , Core Wall Formwork For All Types Of Walls and Columns 2

H20 Wall Form System , Core Wall Formwork For All Types Of Walls and Columns 3
