Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project

Minimum Order Quantity :	100 sqm	Price :	$100-150/Sqm
Packaging Details :	Pallet	Delivery Time :	15-20 work days
Payment Terms :	L/C, T/T	Supply Ability :	1000000 Sqm / Year

Place of Origin:	Shanghai	Brand Name:	ForPro
Certification:	ISO and CE	Model Number:	Customized

Detail Information
Material:	Hot Galvanizing Steel And Plywood	Color:	Yellow,Silver
Application:	LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc..	Name:	Concrete Formwork,lager Size Formwork,Top50 Formwork
Surface:	Painted,Galvanized,Easily Assembled, Reuses, Universal Forming Application, Eco Friendly,	Feature:	With Scaffold Bracket Equipped
Type:	Wall Form,column	Size:	Standard Or Customized
High Light:	High Rigidity Concrete Wall Formwork Systems , Large Size Concrete Wall Formwork Systems , High Rigidity Concrete Formwork Systems

Product Description

Large-size & High Rigidity Concrete Wall Formwork Systems For Nuclear Project

Product Description

Large area formwork can be adapted to different geometric shapes to achieve fair-faced concrete.It includes plywood, wood beams, steel waling and connectors.Big rigidity, good molding quality.

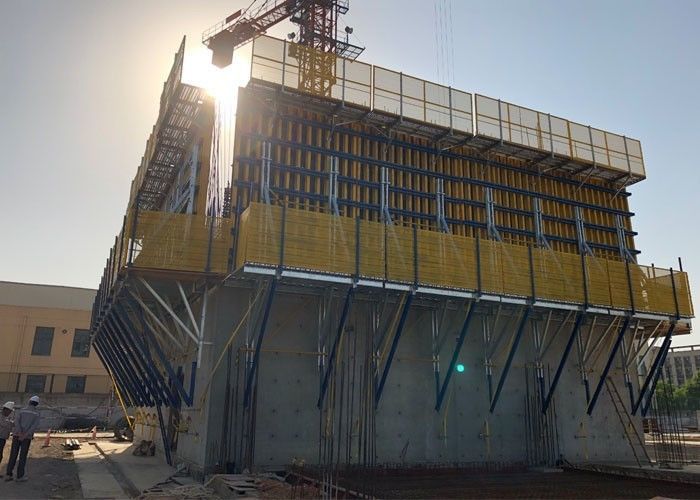

Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project 0

Wall formwork components

Components	Description
Wall formwork panel	Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam	Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling	Double steel channel
Flange clamp	Galvanized To connect steel waling and H20 beams
Panel strut	Painted
Waling connector	Painted, Used for formwork panels alignment
Corner connector	Painted, Used for forming inner corner formwork with wedge pins
Scaffold bracket	Painted,severs as safety working platform

Packing

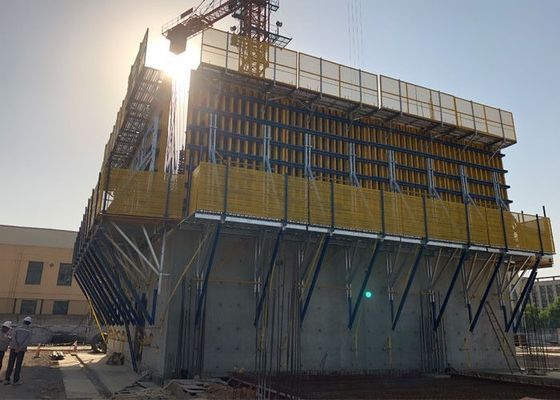

Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project 1

Applications

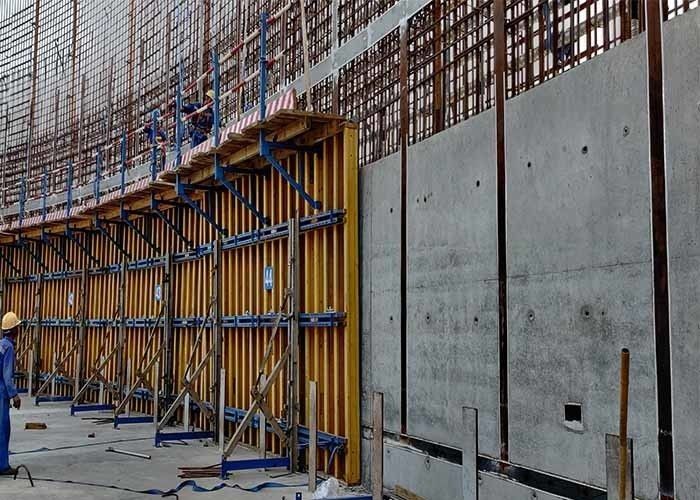

Large Size High Rigidity Concrete Wall Formwork Systems For Nuclear Project 2
