Standard Timber Beam H20 And Steel Waler Concrete System Column Formwork

Minimum Order Quantity : 100 Sqm Price : $100-150 / Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / year
Place of Origin: shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Timber Beam H20

Detail Information

Features: Simple And Efficient Operation Color: Customized
Size: Universal Forming Weight: 45kg/m2 As Usual
High Light:

Timber Beam H20

,

Steel Waler Concrete System Column Formwork

Product Description



Standard Timber Beam H20 And Steel Waler Concrete System Column Formwork

The easy universal panels permit flexible accommodation to column cross-sections of up to 80cm x 80cm by width 95cm panel (105cm x 105cm by width 120cm panel ) in 5 cm increments. By combining panels with heights of 3.00m. 1.2m and 0.6m, a height grid of 30 cm is possible.

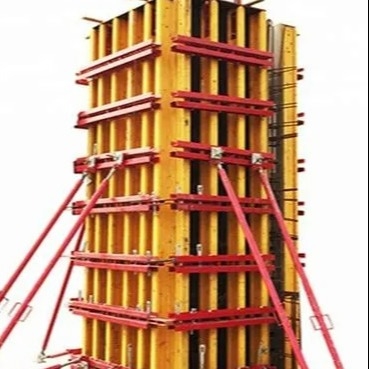

Standard Timber Beam H20 And Steel Waler Concrete System Column Formwork 0



Main Parts

No. Product Name
1 panel
2 clamp
3 support
4 platform
5 ladder
6 handrail





Technical Specification
Max. permissable pressure is 90kN/m2

Height rangeability: 3-6m

Flexible adjustment to fit different column dimension

Weight: 45kg/m2

Time for dismantling and move: 20-30 minutes per set





Forpro Service

Provide support in every stage of projects
1. Provide cosult when client take part in projects bid invitation.
2. Provide optimized formwork tender solution to assitant client to win the project.

3. Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

4. Start to design the formwork detailedly according to the winning bidding.
5. Provide economic formwork solution package and provide continous on-site support service.
