NPP Construction Crane Climbing Formwork With High Load Bearing Supporting Frame

Minimum Order Quantity : 100 pcs Packaging Details : Pallet
Delivery Time : 30-45 work days Payment Terms : L/C, T/T
Supply Ability : 100000 Pcs / year
Place of Origin: shanghai Brand Name: Forpro
Certification: ISO and CE Model Number: Tank construction climbing formwork F16 system

Detail Information

Material: Q235 Steel, H20 ,Plywood,steel Frame Color: Hot-galvanize Brown, Light Yellow,Silver
Size: 70KN Pull Force Per Bracket Application: Silo, Nuclear Power Point, Liquid Nature Gas Tank, Shiplock, High Piers
Product Name: Simple Light Weight Climbing Formwork F16 System Type: Climbing Formwork,Wall Formwork, Steel Formwork,Column Formwork,Climbing Formwork
High Light:

crane climbing formwork

,

self climbing scaffold system

Product Description

Light Weight and Safety Climbing formwork system F16 for NPP Construction



Description

Climbing formwork F16 is modular and low weightest climbing formwork system. With only 3 main components, it can be assemled quickly. F16 climbing bracket provide reliable supporting to all working load.  Diagonal cross spindle can retract formwork panel back  700mm from the concrete surface and provide enough space for formwork cleaning and reinforcement installation. Embedded tie rod with high strength will tansfer all load to the concrete structure.The whole climbing formwotj is popular LNG tank, Nuclear power plant project, silo project and high piers etc. Simple means easy operation and easy material management, measy means low construction costs.



Components
• Big dimension formwork with timber beam H20 and plywood and steel waler

• Triangle brackets F16

Diagonal cross spindle

• 3 levels platform



Charactors
• Combination of forming wood and timber beam, any shape and any radius tank projects can be adapted.

• Economical main Platform is 1.60 wide for safe operation

• With diagonal cross spindle, 1.60m platform can provide 700mm formwork retracting space/

• Min.required concrete strength in anchor point is 15kN

• Max.permissible vertical load is 45KN per bracket



Applications Field

• Liquid nature gas tank

• Industrial shearing wall

• Piers

• Nuclear power plant projects

• Silo projects

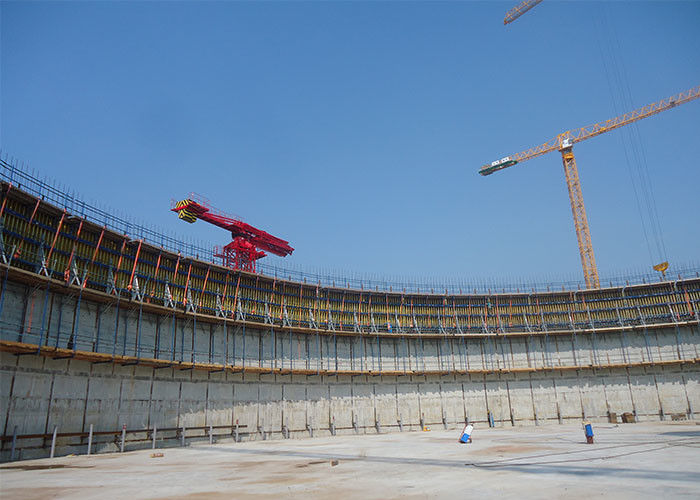

NPP Construction Crane Climbing Formwork With High Load Bearing Supporting Frame 0



Forpro Service

1.Provide cosult when client take part in projects bid invitation.
2.Provide optimized formwork tender solution to assitant client to win the project.

3.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.

4.Start to design the formwork detailedly according to the winning bidding.
5.Provide economic formwork solution package and provide continous on-site support service.
