Non Stop Concreting Slip Formwork System High Efficiency For Cooling Tower

Product Details:
Place of Origin: shanghai
Brand Name: Forpro
Certification: ISO and CE
Model Number: Slip climbing formwork system
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: $2000-2200/pcs
Packaging Details: Pallet
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T
Supply Ability: 10000 Pcs / year

Detail Information

Material: Q235 Steel, Cylinder, Wooden Plank Color: Blue Lacquer, Brown, Light Green,yellow
Size: 2m To 3m Per Day Climbing Speed Application: Silo, Cooling Tower,TV Tower,cement Plant, Raw Meal Silo, Testing Tower,chimney
Product Name: Slip Climbing Formwork CSF150 System Type: Climbing Formwork,Wall Formwork, Steel Formwork,Silo Formwork,Climbing Formwork
High Light:

climbing scaffolding system

,

self climbing scaffold system

Product Description

Slip Climbing Formwork System for Non-stop Concreting to Silo and Cooling Tower and Chimnney



Description

ForPro Slip formwork is a continous climbing formwork system which is drived by hydraulic equipment, It is widely applied in silo, cooling tower, chimney and tank projects. As a non-stop concreting climbing formwork , there is no horizontal concrete joint and save much time of horizontal concrete joint treatment. 2 shifts of workers is prepared and the projects will be done 24 hours per day, the projects could be finished within very short period . The structure will be completely enclosed with sliding formwork, workers will be  quarded safely with enclosed cover and handrail protection. 1.50m width of main platform and 0.85m width of suspension platform ensure speedy and safe formwork operation. Multi level platforms  provide orient work space for formwork operation, concrete pouring,reinforcement installation and concrete surface repairing. The whole system is anchored in the stucture during the whole working process.

Elements
• Main supporting brackets

• Steel or plastic or plywood formwork option

• Hydraulic cylinder and hydraulic unit

• Main platform and suspension platform

• Pre-installed  rod



Features
High efficiency and short construction period due to continuous concreting and no treatment of horizontal concrete joint

Better concrete surface due to no construction joint during whole process

High safety due to closed platform and handrail housing

• Universal components and could be reused to next projects

• Low costs



Applications Field

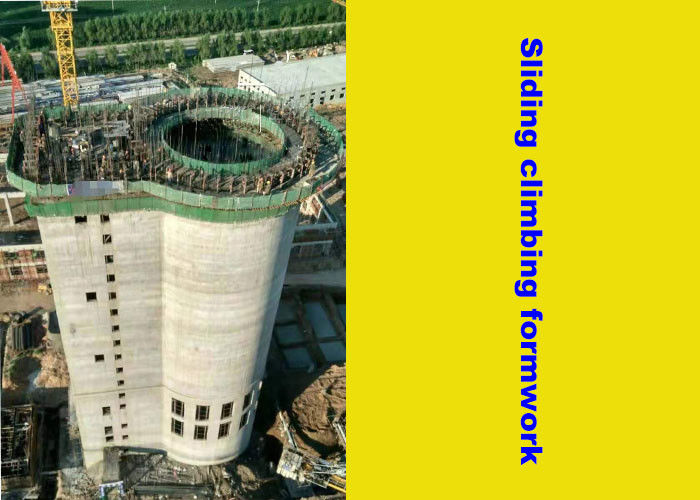

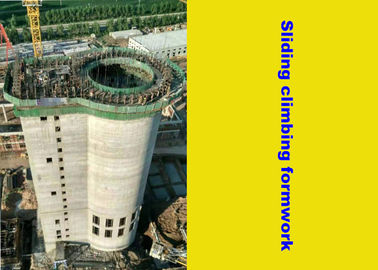

Non Stop Concreting Slip Formwork System High Efficiency For Cooling Tower 0Non Stop Concreting Slip Formwork System High Efficiency For Cooling Tower 1
