Light Weight 6061-T6 Aluminium Formwork System With High Efficiency
Contact Person : Liu
Phone Number : 86-18011399169
WhatsApp : +8618280345525
Minimum Order Quantity : | 500 sqm | Price : | $120-140 / M2 |
---|---|---|---|
Packaging Details : | Pallet | Delivery Time : | 30-45 Work days |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 100000 M2 / Year |
Place of Origin: | Shanghai | Brand Name: | ForPro |
---|---|---|---|
Certification: | ISO and CE | Model Number: | Aluminium Formwork |
Detail Information |
|||
Material: | 6061-T6 Aluminum | Application: | Concrete Construction,Dam,Pier,bridge,Tall Building |
---|---|---|---|
Product Name: | Aluminum Template Formwork,6061 T6 Aluminium Formwork,6061-T6 Aluminium Construction Formwork System | Type: | Wall Form,Slab Formwork,Column Formwork,OEM |
Weight: | 20-28kg/sqm | Advantages: | Light Weight,high Strength |
High Light: | aluminium form work,aluminium wall formwork |
Product Description

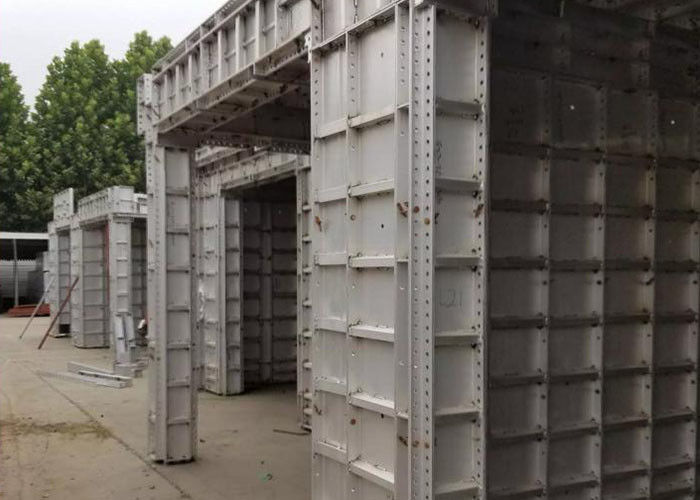

Aluminum Formwork System Panel Concrete Construction For Wall and Slab
Outline
Aluminium Formwork has been in operation across the globe in countries such in Japan, Singapore to name a few for the construction of both commercial and high rises. It comparatively new in India. The Aluminium Formwork panels can be designed for any condition/component of buildings and special architectural features. This system is unique as all the components in a building, starting from slabs to floors. The periphery of resulting structure is concrete therefore we can control the concrete quality, the durability of the structure increases. The formwork system gives form to finish, eliminates the need for external and internal plaster and through the system, the walls can be directly painted with a minimal skim coat. Aluminium Formwork System is the aptest to load bearing wall construction.
Aluminium Formwork VS Wooded Formwork | |||
Material cost (Included Support) | $183-216/m2 | $13--16/m2 | |
cycles time | 200 times at least | 3-5 times | |
Assembling and dismantling labor cost | $3.6-4.2/m2 | $4.2-4.7/m2 | |
Recovery value | $67/m2 | $0.8/m2 | |
Work effeciency | 20m2/day | 15m2/day | |
Final economic index | $5.9-6.4/m2 | $12-13/m2 |
Main components
1. Aluminiu panel system
Wall panel, Beam panel, Deck panel, KC, Stair, etc;
Width:100mm/200mm/300mm/400mm/600mm
2. Reinforcement system
Flat Tie, Steel waler, Vertical waler, Tie rod, etc;
3. Shoring prop system
Balancing, Raking shore, MB, EB, Horizontal rod, Adjustable prop, Props; etc.;
4. Auxiliary system
KB, K screw, L screw, The drip line, Round Pin & Wedge pin, Box, Working Stool, etc
Aluminum Formwork Feature
1. Short construction period---quickly removed system, about 3-4 days each floor
2. High reuse rate,low cost---one set aluminum shutters or formwork can be reused up to more than 300 times.
3. Good stability, high bearing capacity--up to 60kN/m2, safe and reliabe
4. Extensive application---applied to all construction structure, such as load bearing wall, column, beam, floor, stairs, balcony etc
5. Convenient assembly and disassembly, high efficiency--ligh weight, easy for workers to install and move, no need technicians
6. Perfect concrete surface after taking down aluminum shutters or formwork--- flat and smooth, without need to second plaster
7. Clean installation site, more safety--- all accessories are re-used, no construction waste or nails left, neat and safe site for workers.
8. No need to use plywood
