Light Weight Steel Frame Formwork B Form Customized Size With Plywood

Minimum Order Quantity : 100 M2 Packaging Details : Pallet
Delivery Time : 25-35 Work days Payment Terms : L/C, T/T
Supply Ability : 100000 M2 / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Q235 Steel,Aluminium,Plywood,PP Plastic Color: Blue And Customized
Product Name: Steel Formwork, Plastic Formwork For Construction, Aluminum Template Formwork, Adjustable Beam Clamps, Heavy Duty Construction Aluminium Steel Concrete Formwork Type: Reusable Formwork, Panel Slab Formwork, 63# Formwork, Wall Form, Modular Pannels
Sample: Free Packing: Steel Pallet
Size: Customized Name: Concorete Formwork,steel Formwork,Patented Polypropylene Light Formwork Panel
High Light:

steel formwork system

,

steel formwork for concrete

Product Description

Steel Frame Adjustable Formwork B-Form With Plywood For Concrete Column and Wall



Product outline

B-Form is a light weight steel frame panel formwork, 12mm plywood is riveted into steel frame. As a modular panel system, it is a optimized formwork system to construct the wall and column. It is particularly suitable for residential and municipal engineering projects



Technical data

Light panel formwork for widely range of applications, small size panels can be handy mounted.

Panel widths is up to 1.50m and height is up to 3.0m.

Maximum permissible concrete pressure: 80KN/m2;

Shift wheel device is available for moving formwork unit to new position.

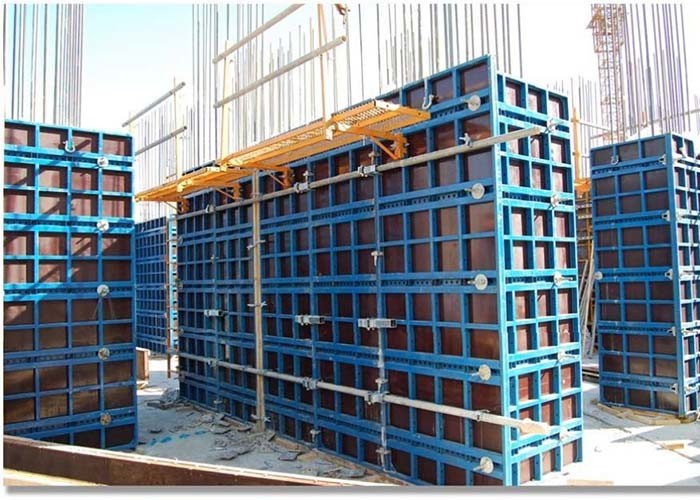

Light Weight Steel Frame Formwork B Form Customized Size With Plywood 0



Frame Panel Formwork Product Sheet



Description Panel size weight   Description Panel size weight
WxH (mm) (kg) WxH (mm) (kg)
 P6030  600x300    10.5  P12060  1200x600    29.6
 P6060   600x600    15.8  P120120  1200x1200    53.0
 P60120  600x1200    28.9  P120240  1200x2400  104.5
 P60240  600x2400    51.8  P120300  1200x3000  142.0
 P60300  600x3000    78.0  P15060  1500x600    48.4
 P9560  950x600    24.9  P150120  1500x1200    90.0
 P95120  950x1200    43.0  P150240  1500x2400  163.0
 P95240  950x2400    81.5  P150300  1500x3000  171.0
 P95300  950x3000  113.0



Product character

Easy and simple handling

  Due to modular and light weight character, the formwork is assembled together quickly ,one hammer is the only tools to operation.

Fast panel connection

  The standard clamp and aligning coupler is the only 2 connection components for all panels.

Idea solution for column construction

  Different columns could be easily formed and adjusted with universal panels.

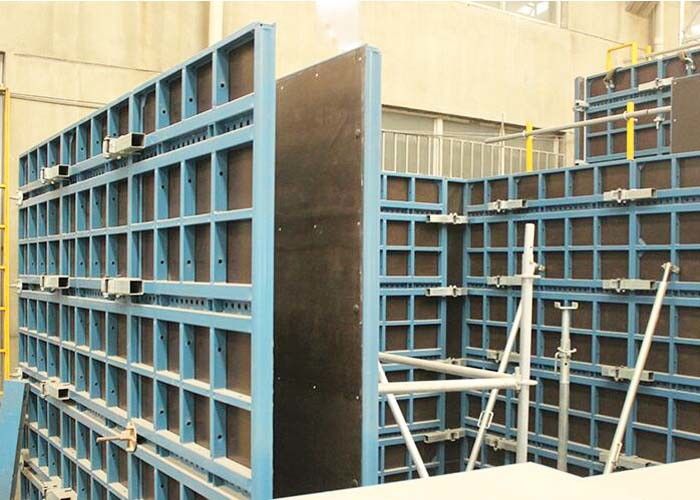

Light Weight Steel Frame Formwork B Form Customized Size With Plywood 1



Application field

Foundation

Retaining wall

Residential column

Shopping mall

Metro station

Light Weight Steel Frame Formwork B Form Customized Size With Plywood 2

Our Services

1.Analysis from the initial stage, and provide professional advice, consultation and formwork planning.
2.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3.Choose a best proposal to help our clients to bid for the project.
4.Start to devise the formwork detailedly according to the winning bidding.
5.Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
