High Strength Steel Formwork System , Light Panel Steel Formwork For Concrete

Minimum Order Quantity : 100 M2 Packaging Details : Pallet
Delivery Time : 25-35 Work days Payment Terms : L/C, T/T
Supply Ability : 100000 M2 / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Q235 Steel,Aluminium,Plywood,PP Plastic Color: Blue And Customized
Product Name: Steel Formwork, Plastic Formwork For Construction, Aluminum Template Formwork, Adjustable Beam Clamps, Heavy Duty Construction Aluminium Steel Concrete Formwork Type: Reusable Formwork, Panel Slab Formwork, Frame Formwork, Wall Form, Modular Pannels
Sample: Sample Paid Packing: Steel Pallet
Name: Concorete Formwork,steel Formwork,Patented Polypropylene Light Formwork Panel Price: Contact Us
High Light:

steel formwork system

,

steel formwork for concrete slab

Product Description

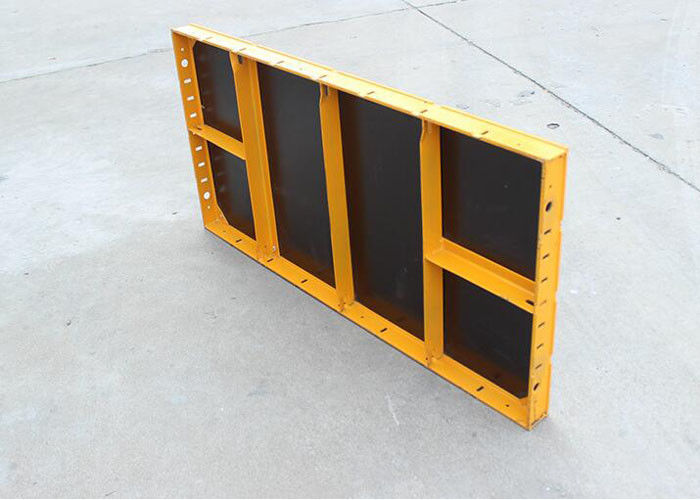

Steel Frame Formwork for Column Wall Concrete Light Weight and High Strength



Outline

B-Form is a light weight steel frame panel formwork, 12mm plywood is riveted into steel frame. As a modular panel system, it is a optimized formwork system to construct the wall and column. It is particularly suitable for residential and municipal engineering projects



Technical data

Light panel formwork for widely range of applications, small size panels can be mounted mannually.

Panel widths is up to 1.50m and height is up to 3.0m

Maximum permissible concrete pressure: 80KN/m2;

Shift wheel device is available for moving formwork unit to new position.

High Strength Steel Formwork System , Light Panel Steel Formwork For Concrete 0



Frame Panel Formwork Product Sheet



Description Panel size weight   Description Panel size weight
WxH (mm) (kg) WxH (mm) (kg)
 P6030  600x300    10.5  P12060  1200x600    29.6
 P6060   600x600    15.8  P120120  1200x1200    53.0
 P60120  600x1200    28.9  P120240  1200x2400  104.5
 P60240  600x2400    51.8  P120300  1200x3000  142.0
 P60300  600x3000    78.0  P15060  1500x600    48.4
 P9560  950x600    24.9  P150120  1500x1200    90.0
 P95120  950x1200    43.0  P150240  1500x2400  163.0
 P95240  950x2400    81.5  P150300  1500x3000  171.0
 P95300  950x3000  113.0



Product features

Perfect for the construction of all kinds of vertical concrete structures, both for wall and column.

Highly efficient with minimum labour costs and erection time.

Designed to withstand high concrete pressures, wall formwork can take pressure 60 KN/m2 while column formwork can take 80 KN /m2.
The formwork are a modular system with fully set of accessories.



High Strength Steel Formwork System , Light Panel Steel Formwork For Concrete 1



Application field

Foundation

Retaining wall

Residential column

Shopping mall

Metro station

High Strength Steel Formwork System , Light Panel Steel Formwork For Concrete 2High Strength Steel Formwork System , Light Panel Steel Formwork For Concrete 3

Our Services

1.Analysis from the initial stage, and provide professional advice, consultation and formwork planning.
2.Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3.Choose a best proposal to help our clients to bid for the project.
4.Start to devise the formwork detailedly according to the winning bidding.
5.Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
