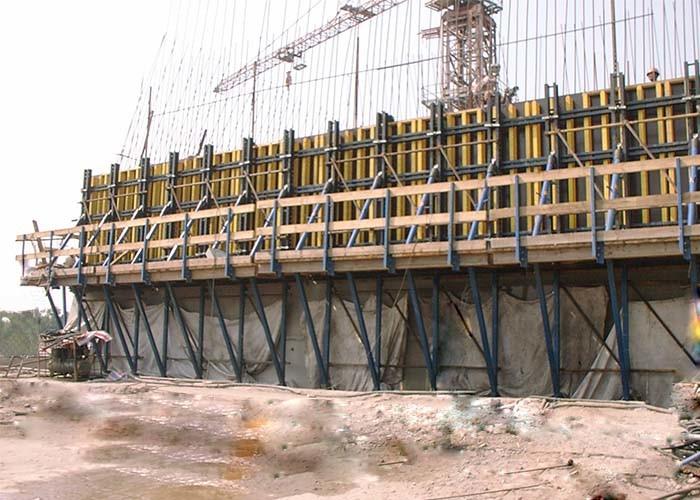

RCC Dam Climbing Formwork , Safety Climbing System With Heavy Duty Climbing Brackets

Minimum Order Quantity : 100 pcs Packaging Details : Pallet
Delivery Time : 30-45 work days Payment Terms : L/C, T/T
Supply Ability : 10000 Pcs / year
Place of Origin: shanghai Brand Name: Forpro
Certification: ISO and CE Model Number: Dam Construction Climbing formwork system

Detail Information

Material: Timber Beam Panel,,steel Panel,Q235 Steel, Bended Profile Color: Customized Color Blue Lacquer, Brown, Light Yellow
Size: Pull Force 220 KN Application: RCC Dam,Shiplock, Bridge Abutment,Massive Concrete, Dam, Power Station,
Product Name: Retracted Dam Climbing Formwork DF220 System Type: Wall Formwork, Steel Formwork,Column Formwork,Climbing Formwork
High Light:

crane climbing formwork

,

climbing scaffolding system

Product Description

Massive Concrete Project To Be Built With Dam Climbing Formwork DF220



Description

For RCC dam projects and other massive concrete projects like dam, abutment, coffer dam, shiplock and power station house projects, the formwork could only be erected from one side,and through-in tie rod could not be applied to fix opposite formwork, all concrete pressure will be taken by climbing brackets. As a high load bearing capacity and safety climbing formwork, Dam formwork DF220 is  the best option to applied  in this kind of project. 3  levels of  platforms  provide orient work space for formwork operation, concrete pouring and concrete surface repairing. The whole system is anchored in the stucture during the whole working process, the modular elements can be adjusted to fit any angle of wall inclination within 300.

Conponents
• Large size steel panel or steel frame panel

• Heavy duty climbing brackets DF220

• Main platform, top plstform and suspension platform

• Climbing cone, high strength screw and snake-like anchor



Features
• Standard ouring height is 3m to 4m

• Max. permissable concrete pressure is 40kN/m2

• Min.concrete strength requirement in anchoring point is 10MPa

• Max. permitted pull force is 220kN per bracket for embedded tie rod

• Main platform width is 1.85m



Steel Panel Dimension Sheet

Product Series Product Dimension (WxL)
3.0m 3.0x2.1 3.0x1.5 3.0x1.2 3.0x0.9 3.0x0.6 3.0x0.3
2.4m 2.4x2.1 2.4x1.5 2.4x1.2 2.4x0.9 2.4x0.6 2.4x0.3



Producing department

RCC Dam Climbing Formwork , Safety Climbing System With Heavy Duty Climbing Brackets 0



Applications Field



RCC Dam Climbing Formwork , Safety Climbing System With Heavy Duty Climbing Brackets 1



Delivery process

RCC Dam Climbing Formwork , Safety Climbing System With Heavy Duty Climbing Brackets 2
