Timber Beam H20 Concrete Slab Formwork Systems For Building Exterior Wall

Product Description

Timber Beam H20 Slab Formwork System for efficient and Easy operation

Outline

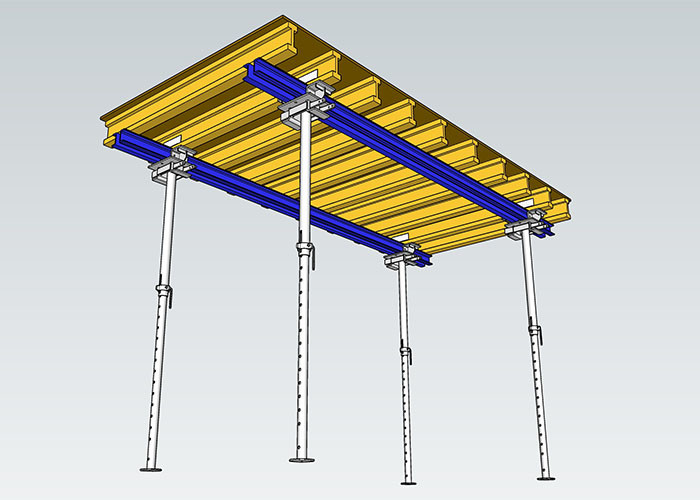

Table formwork is particularly designed for slab construction in housing projects.It is a ready to use formwork system,With 4 porp legs, shuttering, timber beam H20 or steel walers , the formwork is pre-assemled in factory and  transported directly to jobsite for application. Jobsite assembly in advance is another better option for long distance transportation. The whole table system can be fast repositioning thanks to combination of transportation fork or trollery and crane lift. As a modular table formwork, no individual parts need  to be carried from one place to new position, It Means not only labour costs will saved, but also work effeciency will be greated promoted.

Main components

• Adjustable props

• Shuttering

• Timber beam H20

• Steel waler

• Connecting head

Specification

1. Table formwork dimension

    2.4mx4.8m

    2.4mx3.6m

    2.0mx4.8m

    2.0mx3.6m

2. Slab thickness up to 50cm

3. Floor height clearance up to 4m

4. Horizontal transportation via transportation fork or trolley

5. Vertcal transportation via crane lift
