High Efficiency CF220 Climbing Formwork for Core Wall and Bridge Concrete

Description

Climbing Formwork CF220 is a crane dependent climbing system and support structure widely used to pour high walls. It performs as a loading-bearing platform as well as a safe working platform. Depending on the length of the platform, the Climbing System is applicable to heights of more than 100 m over ground and allows a maximum formwork height of up to 6.0 m.

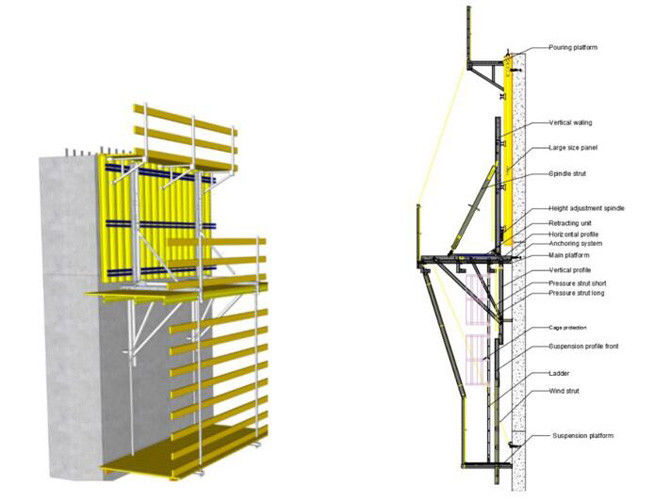

Component
Platform width: 2.2m
Finishing platform: for removing the climbing cone, polishing concrete surface etc.
Anchor system: should be pre-fixed into the formwork and left in the concrete after pouring.
Formwork: can be moved horizontally, vertically and tilted to meet siterequirement.
Main platform: provide workers a safe working platform.
Safety lader:used for workers up and down.

Features
_* Formwork panel can be retracted back 60cm from the concrete wall
_* Formwork panels and climbing brackets are preassembled one time and can be reused many times.
_* CF220 climbing formwork is safely anchored on concrete structure formwork adjustment and surface repair.
_* One climbing unit will only consume 2 anchors each casting step (one unit is composed of 2 climbingbrackets), and plywood could possible to be reused 30 times with properly operation.

The Concrete Pouring Process

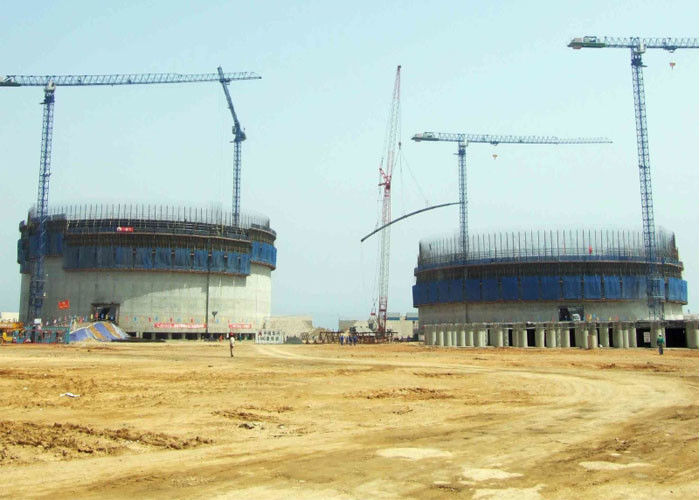

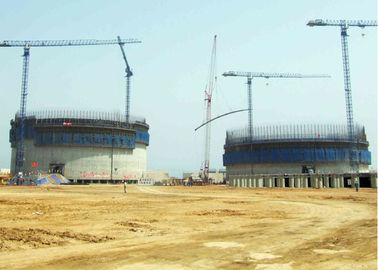

Applications
