Formwork design Automatic Climbing Formwork For Bridge And Super High-rise Building

Minimum Order Quantity : 20 PCS Price : $6000-6500/PCS
Packaging Details : Pallet Delivery Time : 30-45 Work days
Payment Terms : L/C, T/T Supply Ability : 10000 PCS/Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: SCF60

Detail Information

Material: Q235 Steel,Hot Galvanizing, Wood,PP Plastic,Timber Beam H20 Color: Green,Blue,Yellow,customized
Application: Concrete Construction,Dam,Pier,bridge,Tall Building Size: Project Drawing,Standard Or Customized
Feature: Light Weight,One-time Pouring,Fast Assembly & Positioning Advantage: Easly Removable,Easy Operation Quick Climbing And High Saftly Coefficient
Surface: Galvanized Sample: Permitted
High Light:

auto climbing formwork system

,

self climbing system

Product Description

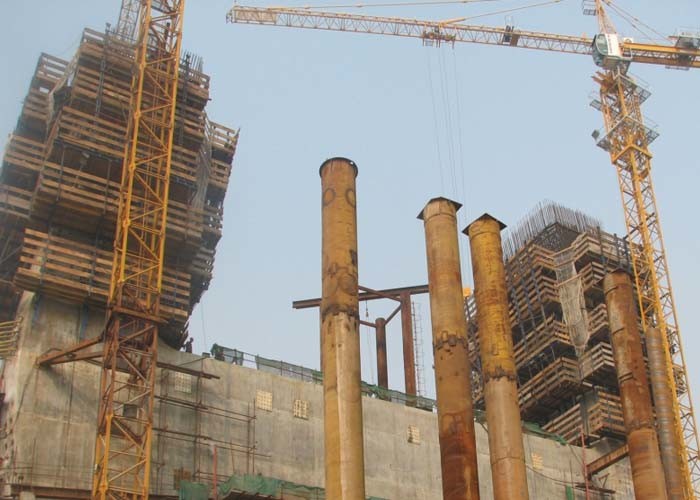

Formwork design Automatic Climbing Formwork For Bridge And Super High-rise Building





Outline

Automatic climbing formwork support structure of core wall ,bridge pier, pillar, silos to be constructed independant of crane and weather. Formwork and platform will be self climbing up with assistance of hydraulic system and lifting mechanisms. The steel rail and the bracket can be climbed up alternatively. Whole climbing process is fast and steadily and climbing operation is highly efficient and safe. This is one best choice for concrete construction of high rise building and bridge projects.



Initial mounting process of SCF60

Formwork design Automatic Climbing Formwork For Bridge And Super High-rise Building 0



Component

ForPro large size timber beam formwork

  High quality plywood/Timber beam/steel waler/walerclamp/lifting bracket.

Climbing bracket

   Horizontal bracket/ vertical profile/ diagonal strut/ vertical waling/ panel/travelling unit/suspension platform/top platform/ Waler hook bolt

Self climber

  Guiding rail /lifting device/suspensionshoe/suspension bolt/safety pin/supporting carriage

Hydraulic system

  Hydraulic cylinder, hydraulic oil line, hydraulic hose connector and hydraulic unit

Anchoringsystem: High strength screw/ climbing cone/ position cone/ embedded anchor rod/sealing sleeve



Technical Specification

• Pemissable vertical load: 60KN

• Pemissable horizontal load: 60KN

• Required min concrete strength at anchor point: 15MPa

• Main platform width:2.3m

• Max.casting height:6.0m



Applications fields

1.Core of high rise building

2.Bridge pylon and high piers

3.Testing tower and TV towers and chimney projects

Formwork design Automatic Climbing Formwork For Bridge And Super High-rise Building 1Formwork design Automatic Climbing Formwork For Bridge And Super High-rise Building 2



Our Services
1. Analysis the bidding inviation documents and provide professional advice consultation and formwork planning.
2. Provide formwork tendering solution and preliminary layout supply&demand.
3. Choose a best propasal to help our clients to bid for the project.
4. Start to design formwork detailedly according to the winning bidding.
5. Provide shop and assembly drawings of the formwork, gives on-site advice and continuous support service.
