Red Yellow Auto Climbing Formwork System 2.5*6m Anti Erosion

Minimum Order Quantity : 20 PIN Price : $6000-6500/PIN
Packaging Details : Pallet Delivery Time : 30-45 Work days
Payment Terms : L/C, T/T Supply Ability : 10000 PIN/Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: SCF60

Detail Information

Material: Q235 Steel,Hot Galvanized, PP Plastic,Timber Beam H20 Color: Green,Blue,Yellow,Black,customized
Application: Concrete Construction,Dam,Pier,bridge Size: Project Drawing,Standard Or Customized
Surface: Galvanised, Color Coated Advantages: Erosion Proof, Corrosion Proof, Wear Proof
High Light:

auto climbing formwork system 2.5*6m

,

Yellow auto climbing formwork system

,

auto climbing formwork anti Erosion

Product Description

Bridge Pylon and High Pier Construction Hydraulic Self Climbing Formwork Technology





Product introduction

The power of the self-climbing formwork comes from the hydraulic system, including the pump station, hydraulic cylinder and oil pipe. The hydraulic system can control the climbing of the climbing rail and the bracket. Therefore, the climbing rail and the stand can be climbed alternately with the help of the hydraulic system. The whole system will climb steadily. No crane is required during construction. Template operation is simple, efficient and safe. It can climb both vertically and obliquely, making it the best choice for high-rise buildings and other vertical structures.





Component



1.ForPro large size timber beam formwork

Include high quality plywood/Timber beam/steel waler/walerclamp/lifting bracket.

2.Climbing bracket

Include Horizontal bracket/travelling unit/suspension platform/ top platform/ vertical profile/ diagonal strut/ vertical Waling/ panel/ Walerhook bolt.

3.Self climber

Include guiding rail /suspension bolt/safety pin/lifting device/suspensionshoe/supporting carriage.

4.Hydraulic system

Include hydraulic cylinder, hydraulic oil line, hydraulic hose connector and hydraulic unit.

5.Anchoringsystem

High strength screw/ climbing cone/ position cone/ embedded anchor rod/sealing sleeve.



Technical Specification

Name Jump form shuttering system
height Max 6m
width 0.6m--2.5m,etc.
lifting capacity 60KN
Climbing speed 0.2m/min
concrete strength 15KN
working platform Q235 Steel,wood,
Technical
Hot galvanizing

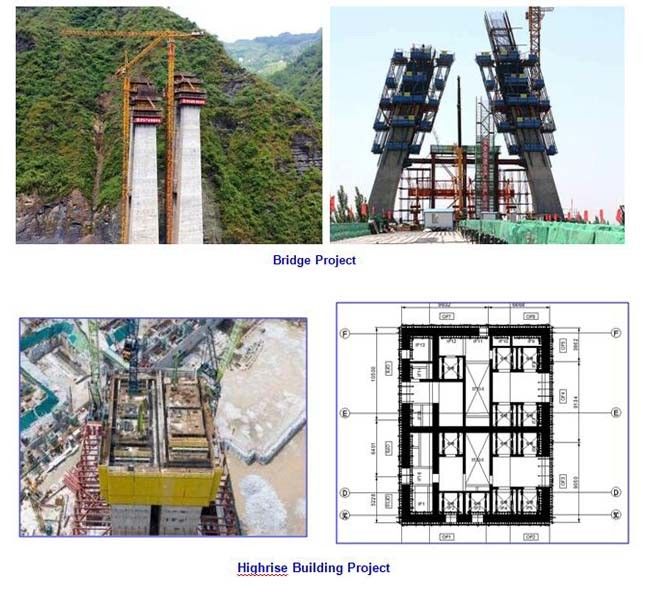

Applications

1.Bridge pier and pylon

2.LNG tank project

3.Super High-rise Building

4.Tower project

Red Yellow Auto Climbing Formwork System 2.5*6m Anti Erosion 0

Our Services
1. Analysis of the initial stage, and provide professional advice, consultation and formwork planning.
2. Developing formwork design, refining initial plan, and exploring relation limit between supply&demand.
3. Choose a best propasal to help our clients to bid for the project.
4. Start to devise the formwork detailedly according to the winning bidding.
5. Provide the layout and assembly of the formwork, gives on-site advice and continuous support service.
