High Turnover H20 Beam Concrete Wall Formwork System For Large Area

Minimum Order Quantity : 100 sqm Price : $100-150/Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Steel And Plywood Color: Yellow,Blue
Application: LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc.. Plywood Size: Customized
Lead Time: 15-20 Work Days Weight: 5.4kg/M
High Light:

formwork for concrete walls


concrete wall formwork systems

Product Description

High reusable H20 Timber Beam Concrete Wall Formwork for Large Area



Product Description

Wall formwork is designed for wall pouring. Application of wall formwork could greatly accelerate the construction speed and shorten the construction time, lower down the  total project costs.The wall formwork system is consist  of plywood,timber beam and steel waIing. Fix plywood with timber beams by tapping screws,connect timber beam with steel waling by flange is easy to assemble,disassemble and modify on's light weight provide convenient for construction and transportation. The construction is also very friendly to environment.The plywood has perfect performance, has good air permeability and water absorbability, the finished concrete surface is clean and smooth.The plywood can be reused approx. 30 times under proper maintaining.


Technical Specification

1.Plywood thickness is 18mm & 21mm, Max dimension is 2mx6m (Customized size).

2.Timber beam height is 200mm, width is 80mm, length is from1m to 6m. Permitted bending moment is 5KN·m;permitted shear force is 11kN;

3.Steel waler is a welded double U profile 100 or 120, slot holes are drilled on the waler flange for universal application.


Item  Large size wall formwork
   Main part  Panels/ Timber beam/ Hoist ring/ Steel waler/ Platform/ Tie rod system/ Prop system
   Max WX H  Max 6m* 12m
   Performance  Can form any shapes, size and take any concrete pressure
   Application  LNG tanks/ Dam/ High-rise building/ Bridge tower/ Nuclear project etc.
   Components  Waler connector/ Beam clamp/ Connecting pin/ Panel strut/ Spring cotter etc.

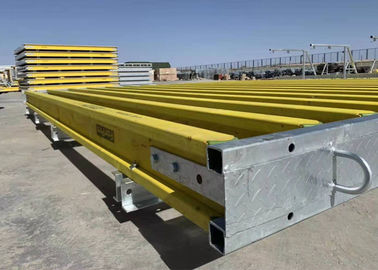

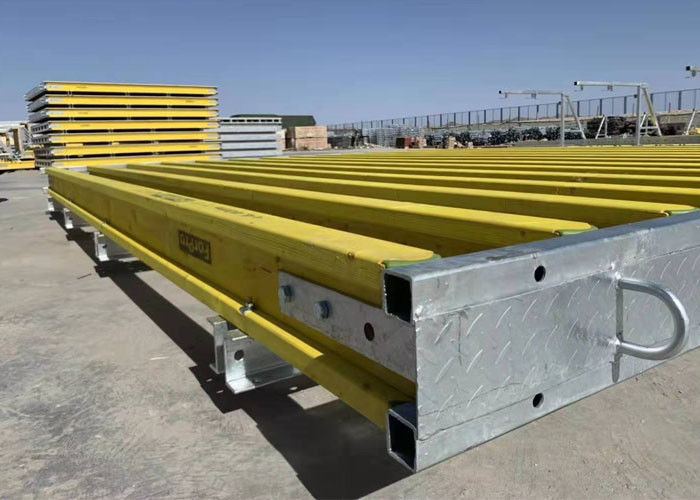

High Turnover H20 Beam Concrete Wall Formwork System For Large Area 0


- Composed of wood and steel, lighter than steel fomwork;
- Convenient to modify, and environmentally friendly;
- Concrete surfaces have fewer pores because of film-faced plywood;
- Cost economically due to more reuse cycle and high safety when  concrete pouring;
- Can be transfered into other formwork according to ForPro specially arranged solution.

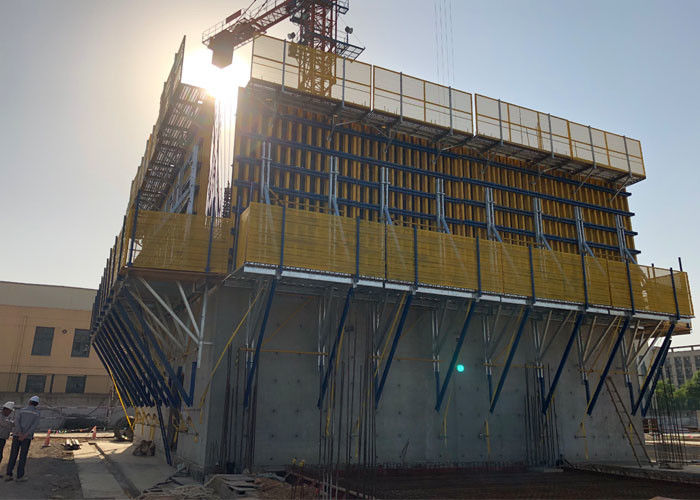

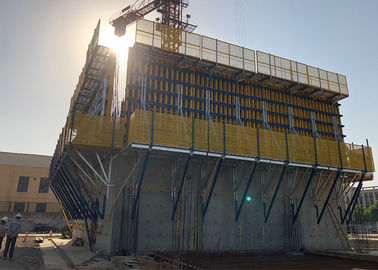

High Turnover H20 Beam Concrete Wall Formwork System For Large Area 1
