Customized Wall Formwork System For Smooth Fair - Faced Concrete

Minimum Order Quantity : 100 sqm Price : $100-150/Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Steel And Plywood Color: Yellow,Blue
Application: LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc.. Plywood Size: Customized
Thickness: Plywood 15mm 18mm 21mm,Customized Price: Contact Us
High Light:

formwork for concrete walls


concrete wall formwork systems

Product Description

Wall Formwork with Any Thickness For Smooth Fair-faced Concrete


Product Description

Wall formwork is designed for wall pouring. Application of wall formwork could greatly accelerate the construction speed and shorten the construction time, lower down the  total project costs.The wall formwork system is consist  of plywood,timber beam and steel waIing. Fix plywood with timber beams by tapping screws,connect timber beam with steel waling by flange is easy to assemble,disassemble and modify on's light weight provide convenient for construction and transportation. The construction is also very friendly to environment.The plywood has perfect performance, has good air permeability and water absorbability, the finished concrete surface is clean and smooth.The plywood can be reused approx. 30 times under proper maintaining.


1. Can create any shape and size of wall formwork with any thickness.
2. Can choose whichever form face material best meets your requirements - e. G. For smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on your site or before arrival at your site, saving time, cost and space for you.
5. Can match well with most Euro formwork systems.


Components Description
Wall formwork panel Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling Double steel channel
Flange clamp Galvanized To connect steel waling and H20 beams
Panel strut Painted
Waling connector Painted, Used for formwork panels alignment
Corner connector Painted, Used for forming inner corner formwork with wedge pins
Scaffold bracket Painted,severs as safety working platform

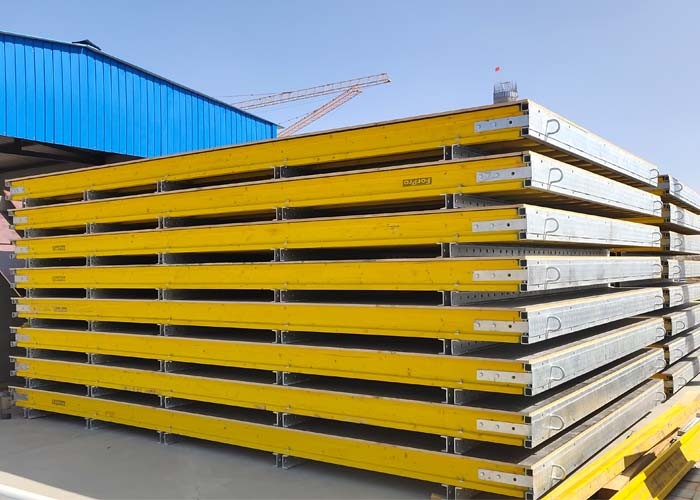

Customized Wall Formwork System For Smooth Fair - Faced Concrete 0Customized Wall Formwork System For Smooth Fair - Faced Concrete 1


1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.



Customized Wall Formwork System For Smooth Fair - Faced Concrete 2
