Light Weight Steel Shuttering Plates , Concrete Wall Forming Systems
Contact Person : Liu
Phone Number : 86-18011399169
WhatsApp : +8618280345525
|Minimum Order Quantity :||100 Square meter||Price :||$100-150/Square meter|
|Packaging Details :||Pallet||Delivery Time :||15-20 work days|
|Payment Terms :||L/C, T/T||Supply Ability :||1000000 Square meter / Year|
|Place of Origin:||Shanghai||Brand Name:||ForPro|
|Certification:||ISO and CE||Model Number:||Customized|
|Material:||Steel And Wood||Color:||Yellow,Blue,or Customized|
|Application:||LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc..||Plywood Size:||Customized|
|Reusable Times:||30-60 Times||Packing:||Pallet|
concrete wall forming systems,
concrete wall formwork systems

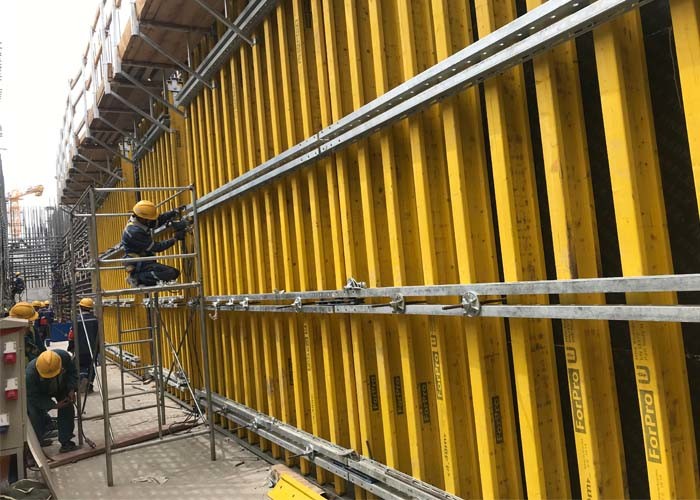

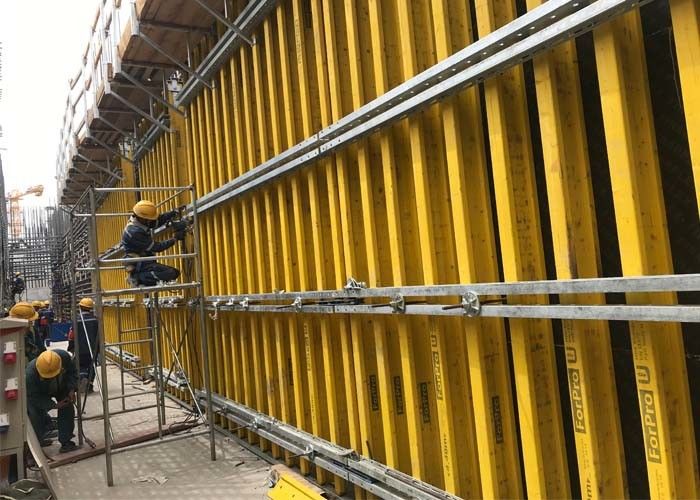

High Efficienty Timber Beam Formwork for Core Wall and Columns Construction
High flexibility with only a few main components can meet any construction requirements. Timber beam H20, steel waling, plywood and clamp etc...These components can be combined for all shapes, even with the restructuring of wall formwork units when a frequent change of the building structure plans happens.
1. Can create any shape and size of wall formwork with any thickness.
2. Can choose whichever form face material best meets your requirements - e. G. For smooth fair-faced concrete.
3. Depending on the concrete pressure required, the beams and the steel waling are spaced closer or apart. This ensures optimum form-work design and the greatest economy of materials.
4. Can be pre-assembled on your site or before arrival at your site, saving time, cost and space for you.
5. Can match well with most Euro formwork systems.

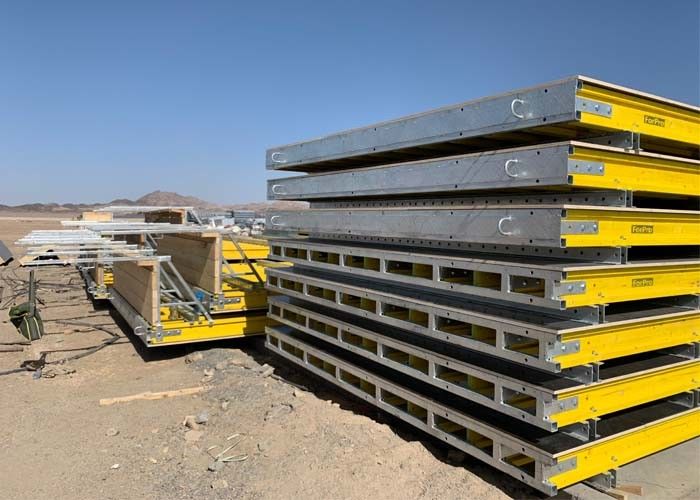

Wall Formwork Components
|Wall formwork panel||Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)|
|H20 Timber beam||Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size|
|Steel waling||Double steel channel|
|Flange clamp||Galvanized To connect steel waling and H20 beams|
