H20 Timber Beam Wall Forming Systems Easy Assembly With High Rigidity

Minimum Order Quantity : 100 sqm Price : $100-150/Sqm
Packaging Details : Pallet Delivery Time : 15-20 work days
Payment Terms : L/C, T/T Supply Ability : 1000000 Sqm / Year
Place of Origin: Shanghai Brand Name: ForPro
Certification: ISO and CE Model Number: Customized

Detail Information

Material: Hot Galvanizing Steel And Plywood Color: Yellow,Blue
Application: LNG Tanks/ Dam/ High-rise Building/ Bridge Tower/ Nuclear Project Etc.. Plywood Size: Customized
Thickness: Plywood 15mm 18mm 21mm,Customized Components: Steel Wailing;Plywood;H20 Timber Beam Etc.
High Light:

concrete wall forming systems


concrete wall formwork systems

Product Description

H20 Wall Formwork Systems is Used for All Types of Walls And Has High Rigidity


Product Description

The basis of the H20 Wall Formwork system is the H20 Timber Beam. The H20 Timber Beam is made of the highest quality with competitive advantages.
The H20 Timber Beam is sturdy, easy to handle and only weighs 4.80 kg/m. It provides a high load-bearing capacity even for great distances of Walers. This advantage results to less anchor points. The project oriented design and arrangement of the H20 Timber Beam elements allow choices of various types of plywood sheet. Furthermore, the system allows an optimum and flexible arrangement of tie positions.
The H20 wall formwork elements are assembled quickly and easily by connecting the H20 Timber Beams to the Walers by means of H20 Flang Clamp. Dismantling of elements is done as easily as the erection of the system. The advantage is that the wall formwork system provides a high adaptation and easy re-assembling when ground plans of the structure change frequently.
The H20 wall formwork system is used for all types of walls and has high rigidity and stability at a relatively low weight.




Components Description
Wall formwork panel Plywood thickness is 15mm,18mm & 21mm, Max dimension is 2mx6m (Customized size)
H20 Timber beam Water proof treated;Height: 200mm;Width: 80mm;Length: as per table size
Steel waling Double steel channel
Flange clamp Galvanized To connect steel waling and H20 beams

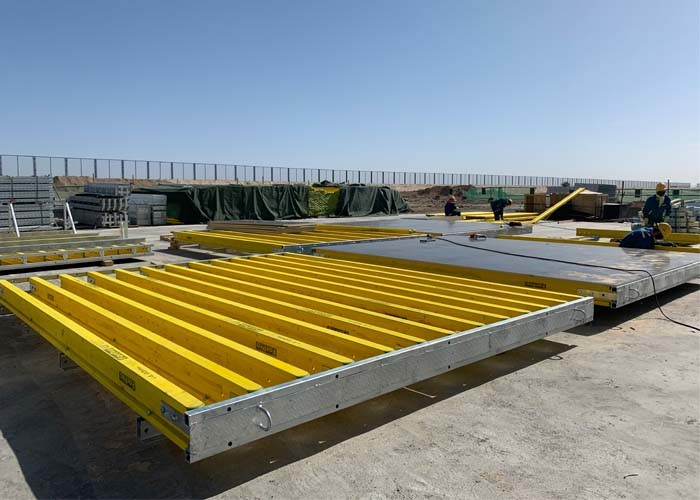

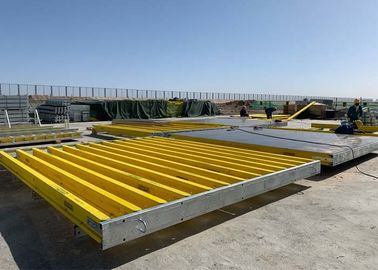

H20 Timber Beam Wall Forming Systems Easy Assembly With High Rigidity 0

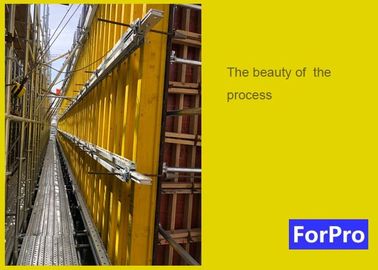

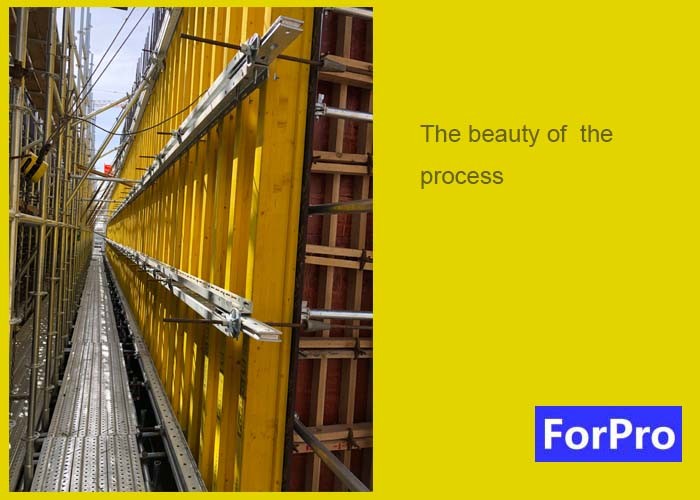

H20 Timber Beam Wall Forming Systems Easy Assembly With High Rigidity 1



* Ready to use after pre-assembly.

* Efficent and time-saving especially for large area walls where request for repeated castings.

* Can meet different fresh concrete pressure by spacing the timbers and walings.

* Can produce fair-faced concrete finishing surface.



H20 beam is an important part in international construction formwork system, with high strength, light weight, strong carrying capacity, can reduce the amount of support and expand the spacing and the construction space, convenient installation and use of flexible, easy assembly and disassembly, surface water resistant at the scene, the province province etc., can be use for many years, low comprehensive cost amortization expenses.


1. Generally, the total net weight of loaded container is 22 tons to 26 tons, which need be confirmed before loading.
2. Different packages are used for different products:
---bundles: timber beam, steel props, tie rod, etc.
---pallet: small parts will be put in bags and then on pallets.
---wooden cases: it is available on customer's request.
---bulk: some irregular goods will be loaded in bulk in container.



  • Containment and factory of nuclear power plant project:
  • Dam, shiplift, power plant and coffer dam of hydropower project:
  • Pylon, pier and anchorage blocks of bridge project:
  • Core, column and elevator shaft of high-rise building:
  • LNG & Chemical tank etc.
