Lightweight Safety Modular Climbing Formwork System F16 For LNG Tank

Product Description

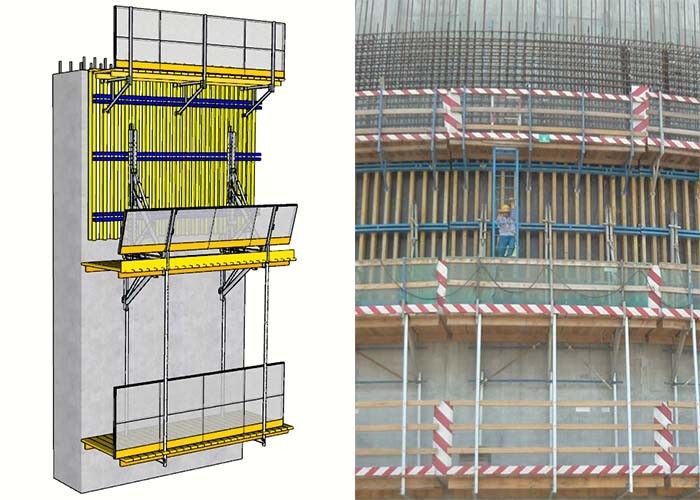

Light Weight and Safety Climbing formwork system F16 for LNG Tank

Description

Climbing formwork F16 is the lightest climbing formwork system, It is widely utilized in various  projects like LNG tank, Nuclear power plant project, silo project and high piers etc. Less weight means lower crane capacity requirements and lower construction costs. 1.60m wide platform in comibination movable formwork unit ensure speedy and safe formwork operation,Formwork panel could be move back from the concrete surface 70mm and leave enough space for formwork cleaning. 3 levels of platforms  provide orient work space for formwork operation, concrete pouring,reinforcement installation and concrete surface repairing. The whole system is anchored in the stucture during the whole working process.

Elements
• Timber beam H20 large size formwork

• Light weight climbing brackets F16

• Panel travelling unit can trave formwork 700mm away from concrete

• Anchoring system 15.0 with high loadability

Features
• Main Platform is 1.60 wide for safe operation

• Formwork can be moved back 700mm from concrete surface

• 3 levels of platform provide orient operation space

• High capacity of 45KN verticle load per bracket and bracket

Climbing Formwork Installation Process

Applications Field

• LNG Tank Projects

• Nuclear power plant projects

• Silo projects

• Storage tank projects
